• Model NO.：LC7227Y
• Voltage：100-240V
• With Light Source：With Light Source
• Beam Angle：25°,15°,45°
• Certification：CE, RoHS
• Applicable Places：Indoor Lighting,Space Lighting
• Folded：Unfolded
• Model：LC7227y
• Cct：3000-6000k
• Power：7W,7*3W
• Cut Hole：Dia 75mm
• Size：Dia85*H77mmh
• Input：20-23VDC,Max 700mA
• Lumen：670-1180
• Surface Color：Silver,Black
• CRI：More Than 80
• Chip：Osram
• Transport Package：Natural Packing, Lesun Package or Carton Package
• Specification：CE and Rohs
• Trademark：LESUN
• Origin：China
• HS Code：94054090
• Production Capacity：1000PCS,Day

Basic Info.

Model NO. LC7227Y Voltage 100-240V With Light Source With Light Source Beam Angle 25°/15°/45° Certification CE, RoHS Applicable Places Indoor Lighting/Space Lighting Folded Unfolded Model LC7227y Cct 3000-6000k Power 7W/7*3W Cut Hole Dia 75mm Size Dia85*H77mmh Input 20-23VDC/Max 700mA Lumen 670-1180 Surface Color Silver/Black CRI More Than 80 Chip Osram Transport Package Natural Packing, Lesun Package or Carton Package Specification CE and Rohs Trademark LESUN Origin China HS Code 94054090 Production Capacity 1000PCS/Day

Product Description

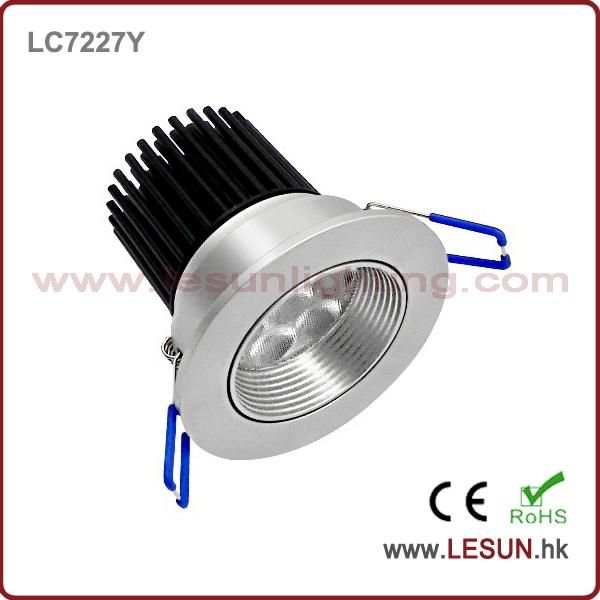

Recessed Instal 7W/7X3w LED Ceiling Downlight

 Light source:High Power LEDPower:7*1W/7*3WColor:3000-6000KColor Rendering index:Ra>80Beam Angle:15°/24°/45°Cut Hole:75mmSurface color:silver
Lumen:670-1180lmInput parameter:20-23Vdc/Max 700mA
matched led driver
Descriptions:
> High brightness led ceiling light
> Adjustable type
> Recess mounted
> Diameter: 120mm
> With LED lens, which supply the 15 or 30degree angle beam light
>Various LED color are available(warm white,cool white)
> Cool operating temperature
> Order LED controller separately
> Non-dimmable
> Easy plug connector are supplied if requested
Applications:
>Office buildings,Supermarkets,Emporiums
>Hotels and restaurants,Decorating lamp
>Running lamp,Exhibition hall,Building outline
>Parks and palace decoration



25W recessed led ceiling light packing & details:
Packing detail: carton box
Delivery detail: within 3-5 working days after receive the payment

30W recessed led ceiling light features:
1) Adopt high brightness and low light decline led;
2) Wide voltage and constant current design;
3) Well-design of thermal structure;
4) 60-80% energy saving than traditional lamps;
5) Long lifetime, over 5,0000 hours 6) Warranty quality: 2 years
7) Instant start, no flashing;
8) Pro-environment, no UV or other radiation;
9) Low maintenance cost;
10)Low electro-magnetic radiation
11)No mercury, environment friendly.
12)Luminescence without heat radiation.
13)No UV or IR radiation, Harmless to human body

Applications:

1.Living room, bedroom, kitchen, washroom;
2. School, university, hospital, hotel;
3. Conference, meeting room, show room, showcase;
4. Commercial complexes;
5. Factory, plant, warehouse, office;
6. Supermarket, department store
7.jewelry store,hotel and fashion shop etc

Advantage:

1.High light transmittance lens, wonderful show effect

2.Perfect design with full application of air convection principle,good heat dissipation

3.Exquisite frosted surface, long durable

4.Competive price,good looking

5.Enviroment protecting

6.Energy saving

Insturctions:

1.Lamps input is a low-voltage DC,please mention the positive terminal (the red) and the negative terminal (the black) when connecting.
2.If you want to add or reduce lamp,it must use series connection.
3.when installing make sure the power is off.Before connecting lamp and LED driver,collide the two lines to release spare power.Only after this procedure,then to electrify.
4.Don't pull the line crudely.



Good servious:

1. Good after-sales service,warranty 2 years.
2. Your inquiry related to our products or prices will be replied in 24hrs.
3. OEM&ODM, any your customized lightings we can help you to design and put into product.
4. Distributoership are offered for your unique design and some our current model
5. Protection of your sales area, ideas of design and all your private information




Model	LC7227Y
Power	7W/7*3W
Light source	LED
CCT	3000-6000K(warm white/natual white/cool white)
Beam angel	15° /24° /45°

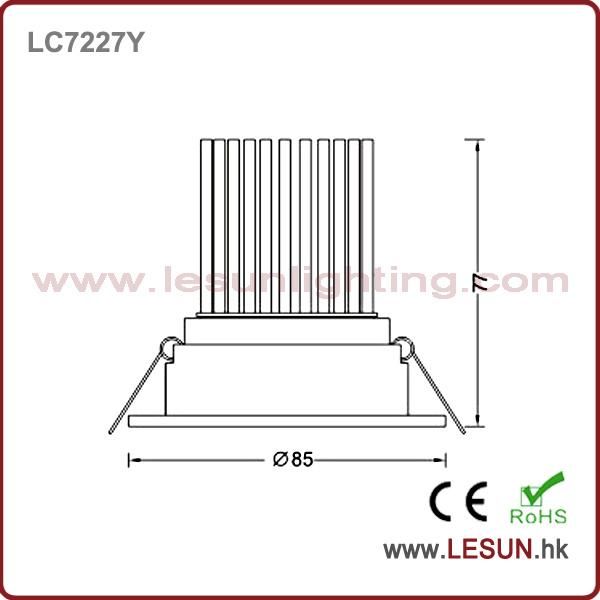

Size	dia 85*H77mm
Cut hole	dia 75mm
Surface color	silver/black/white
