• Model NO.：WD-LDCOB-20W-CONE
• Warranty：3 Years
• Shape：Round. Square
• Transport Package：Customized Packing , Neutro-Packing
• Specification：CE, ROHS
• Trademark：World-Dawn
• Origin：Guangdong
• HS Code：9405409000

Basic Info.

Model NO. WD-LDCOB-20W-CONE Warranty 3 Years Shape Round. Square Transport Package Customized Packing / Neutro-Packing Specification CE, ROHS Trademark World-Dawn Origin Guangdong HS Code 9405409000

Product Description

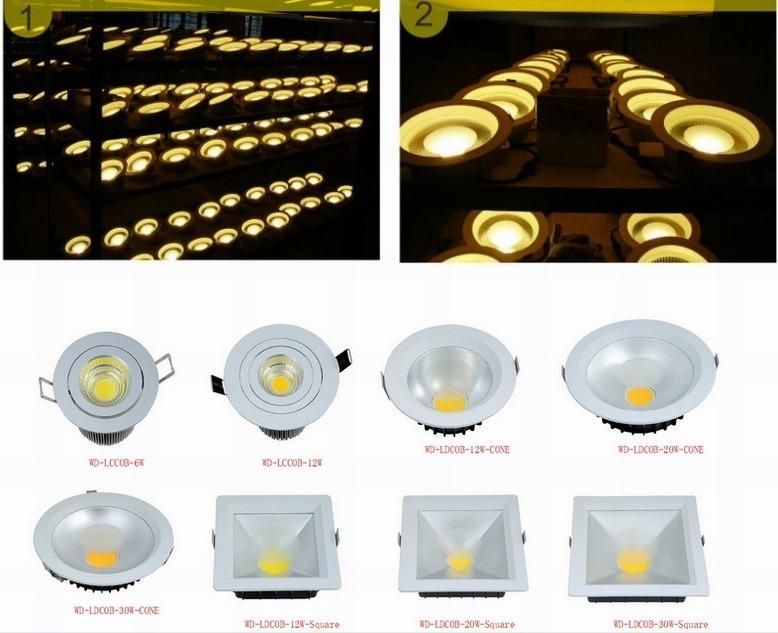

Taiwan EPIstar Chip 20W COB LED Downlight

1.What is COB ?
Chip-on-Board, or COB, refers to the semiconductor assembly technology wherein the microchip or die is directly mounted on and electrically interconnected to its final circuit board, instead of undergoing traditional assembly or packaging as an individual IC. The elimination of conventional device packaging from COB assemblies simplifies the overall process of designing and manufacturing the final product, as well as improves its performance as a result of the shorter interconnection paths.
2. What is COB Advantage ?
1) Reduced space requirements;
2) Reduced cost;
3) Better performance due to decreased interconnection lengths and resistances;
4) Higher reliability due to better heat distribution and a lower number of solder joints;
5) Shorter time-to-market
3. The COB Led Downlight Features:
1. Input Voltage: 85-230VAC,Wide voltage design, available for whole world use.
2. Appearance: Milk white, the same with housing finish color, creating a mood that is warm and cozy.
3. Material: Aluminum alloy and PMMA / Glass light guide plate.
4. Chips: Adopting Taiwan Epistar chips as light source to insure high luminous flux and conformity light output.
5. Heat dissipation: The multi-fin casting design ensures full heat dissipation.
6. Driver: External driver.
7. No UV or IR radiation, Harmless to human body
8. Detachable power source, convinent for your change


About Products:

Application:

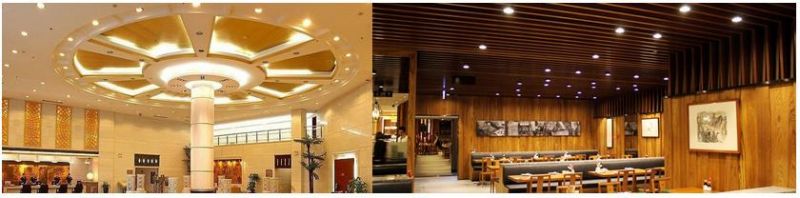

General commercial & architectural lighting, hotel, restaurant, shop, office, theater, garage, hospital, corridor, library and warehouse etc.



Light Source:	LED	Item Type:	Downlight	LED Light Source:	COB LED
Warranty:	3 years	Input Voltage:	AC85-230V	Lamp Power:	20W
Lamp Luminous Flux:	1320LM / 1580LM	Lamp Luminous Efficiency:	80LM/W	CRI:	75a - 80a
Color Temperature:	2700K/3000K;  4000K/6000K	Working Temperature:	less than 55°C	Working Lifetime:	30,000 hours
Lamp Body Material:	Aluminum Alloy	IP Rating:	IP20	Certification:	CE & RoHS
Model Number:	WD-LDCOB-20W-CONE	Beam Angle:	80°	Size:	Φ195mm*65mm
