PIR Sensor Bulkhead Lamp

Ningbo Haishu Kaiau Electronics Co., Ltd.
  • Material：Aluminum
  • Style：Modern
  • Light Source：Energy Saving
  • Shape：Round
  • Certification：CE, RoHS
  • Voltage：85-265V

Base Info

  • Model NO.：KA-W81B
  • Switch Type：PIR Sensor Switch
  • Lamp Holder：E27
  • Warranty：Two Years
  • Delivery Time：Within 18 Days
  • Samples：Available
  • Transport Package：White Box or Customized Color Box
  • Trademark：KAIAU
  • Origin：Mainland China
  • Production Capacity：50, 000 PCS,Month

Description

Basic Info.

Model NO. KA-W81B Switch Type PIR Sensor Switch Lamp Holder E27 Warranty Two Years Delivery Time Within 18 Days Samples Available Transport Package White Box or Customized Color Box Trademark KAIAU Origin Mainland China Production Capacity 50, 000 PCS/Month

Product Description

KA-W81B PIR Sensor Bulkhead Lamp
1. Power source: 85-265V
2. Power frequency: 50/60Hz
3. Load: Energy saving bulb; Incandescent lamp<60W
4. Detection range(22° C): <180°
5. Detection distance: 5-7m(max)(24° C)
6. Time-delay: Min: 8sec± 3sec, max: 3Min± 1Min
7. Ambient light: 10LUX~sunshine
8. Installation height: 1.5m~3m
9. Working temperature: -10º C~+40° C
10. Working humidity: ≤ 95%RH

1) Detection distance:2~7m2) Detection range:180°  3) Power sources:180~240V/AC                             100~130V/AC4) Power frequency:50/60Hz5) Ambient-light:<10~2000Lux6) Delay-time:8 S~3min±1min7) Rated Load:60W (max)8) Installation height:1.5m~3.0m9) Working temperature:-10°C~+40°C10) Working humidity:<93%RH11) Waterproof grade: IP44  KA-W81B Introduction:This product is a kind of energy-saving automatic lamp ,it can turn on when one comes and turn offafter he leaves, It can identify day and night automatically. It adopts infrared energy discharge detectorand integrated circuit. its performance is stable. The lamp will be on when one enters the detection fieldand trigger it, and it will be off after one leaves KA-W81B Function:1.Can identify day and night automatically, the working ambient light can be adjusted freely, it can workautomatically at night and stop in the daytime,2.The illuminated time can be delayed automatically and adjusted according to the customer's desire.

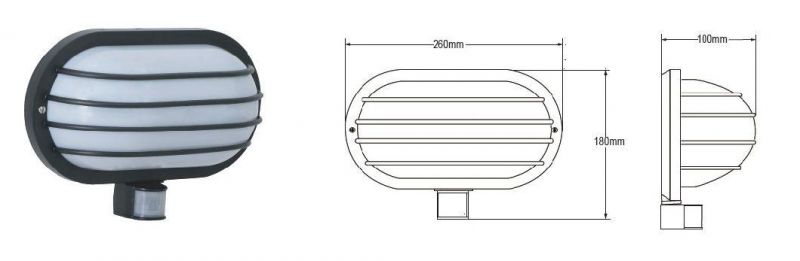

KA-W81B Dimension:
PIR Sensor Bulkhead Lamp

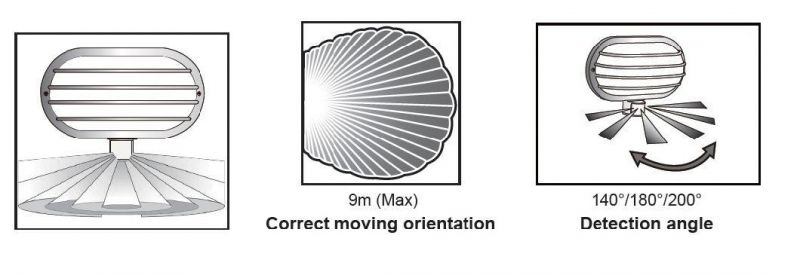

KA-W81B Detection range and angle:
PIR Sensor Bulkhead Lamp

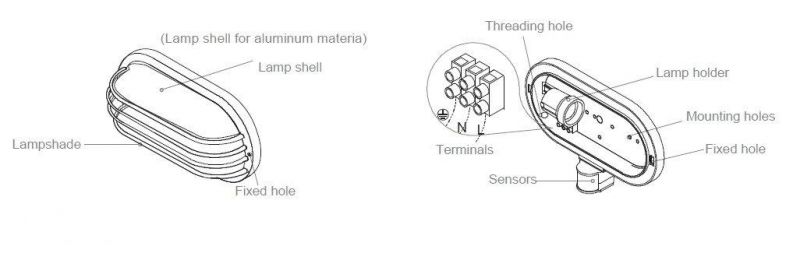

The detail name of KA-W81B components:
PIR Sensor Bulkhead Lamp
