• Model NO.：RH-W22
• Switch Type：Switch on ,off
• Lamp Holder：Screw Fix The Bracket on The Wall
• Quantity of Lights：18,24
• With Light Source：With Light Source
• Brand Name：Harmony Lighting LED Bar Light
• Factory Address：Guangdong of China
• LED Brand：Osram
• Power：18W,24W
• Products Type：LED Wall Washer Light
• Size：L1000*W39*H96mm
• Luminous Flux：100-130lm,W
• Emmiting Angle：10*45 Degrees
• Average Life：50000 Hrs
• Warranty：2 Years
• Transport Package：Outer Box up to Export Standard
• Specification：CE, ROHS, CCC, ISO9001
• Trademark：Harmony Lighting
• Origin：Guangdong of China
• HS Code：9405409000
• Production Capacity：1000meters,Day

Basic Info.

Model NO. RH-W22 Switch Type Switch on /off Lamp Holder Screw Fix The Bracket on The Wall Quantity of Lights 18/24 With Light Source With Light Source Brand Name Harmony Lighting LED Bar Light Factory Address Guangdong of China LED Brand Osram Power 18W/24W Products Type LED Wall Washer Light Size L1000*W39*H96mm Luminous Flux 100-130lm/W Emmiting Angle 10*45 Degrees Average Life 50000 Hrs Warranty 2 Years Transport Package Outer Box up to Export Standard Specification CE, ROHS, CCC, ISO9001 Trademark Harmony Lighting Origin Guangdong of China HS Code 9405409000 Production Capacity 1000meters/Day

Product Description

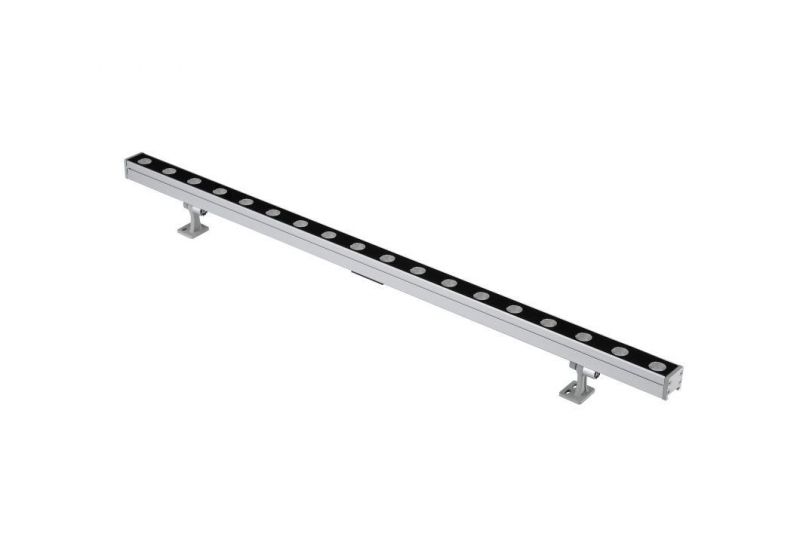

Best Price Outdoor Shopping Mall LED wall washer lighting manufacturer


New Features:
1. The brightness is uniform and gradually fades; the continuous surface is installed without dark areas;
2. Grille net and shading board, double anti-glare;
3. Structure waterproof, IP grade can reach above IP66;
4. Equipped with air pressure valve (Respirator) to ensure the pressure balance inside and outside the lamp;
5. Multi color mixing, DMX512 control system, gray level: 65536 levels, refresh rate: 4K;

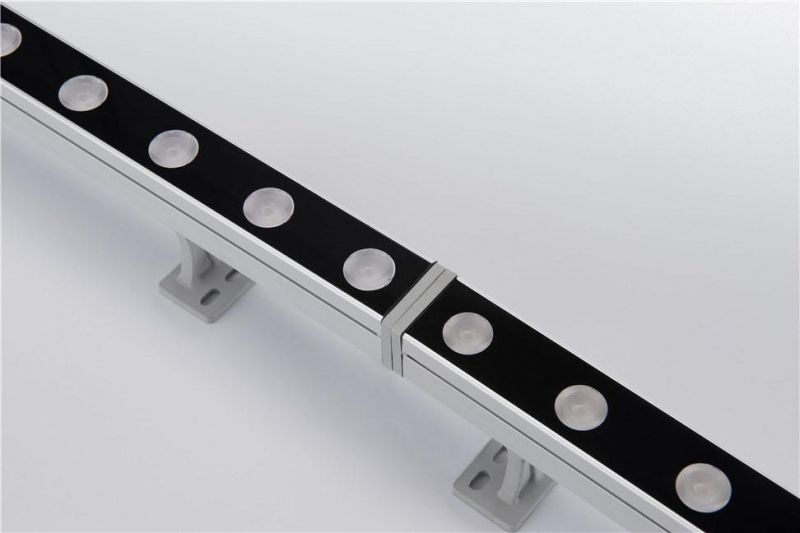

6. The dial adjustment bracket, the gear bite adjustment angle, stable and reliable; the irradiation angle can be adjusted by 180°;
7, 4mm flat tempered glass, lamp body without step design, with self-cleaning, no dust accumulation and other characteristics;
8. The lamps are powered by waterproof three-way power supply, and the power transmission at a longer distance;
9. Designed by our engineers, We are the sole owners. So we could control good quality step by step.


Item NO.	RH-W22
Power	24*1W
Size	L1000*W39*H95MM
LED chip	Osram
Material	Aluminum    alloy
Light efficiency	90-120LM/W
Protection level	IP65
Power Factor	0.95
CCT	w/ww:2700-7500K
Lamp cover	Dark gray
Light color	RGBW,W/WW/R/G/B is available
Voltage	DC24V,
Beam angle	10*30 °
Life span	50,000hrs
Warranty time	2-3years
Certificate	CE&ROHS&CCC&ISO9001

Applications:
1) Ambience lighting for bar, dance hall

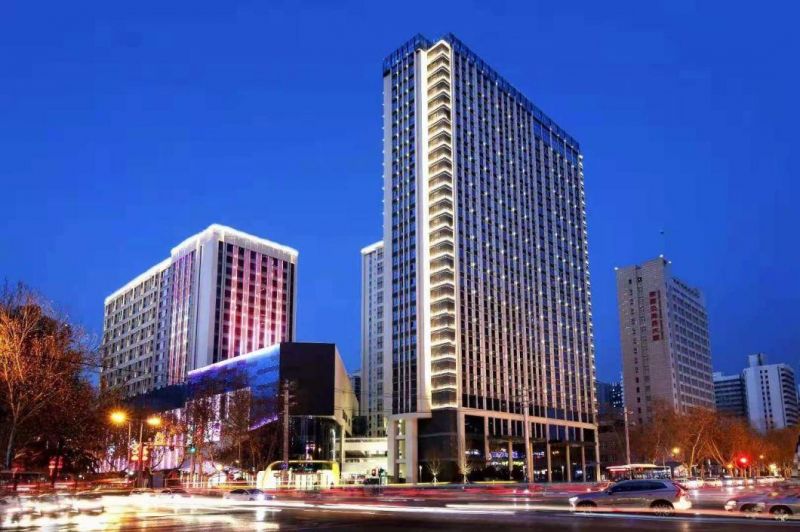

2) Lighting for billboard, factory,hotle,building of the outside wall
3) Lighting for landscaping building, wall washing for bars, clubs, Bridge,stages, plazas





Competitive Advantages
· Experienced technical staff
· Advanced equipment
· High quality
· Experienced R&D department
· OEM accepted
· Strong production capability
· Large scale production lines
· Clients' special requirement accepted
· Unique design
· Good reputation



Harmony Lighting Main Products:
 led wall washer light, led garden spot light,led project flood light,



Our service:
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM&ODM, any your customized lightings we can help you to design and put into production.
4. Protection of your sales area, ideas of design and all your private information.
5. Best quality and competitive price


Packaging:
Standard packing with box&carton up to export standard or at customer's requirement, inner put some bubble film to protect the product
104*19*32cm/10pcs

Delivery:
3-9workdays for 1000-3000PCS after deposit, 1-3days for sample
