• Model NO.：OED-DC-20W
• Application：Home Furnishing, Engineering, Shops
• Certification：CE, RoHS
• Voltage：85-256V
• Applicable Places：Restaurant
• Color：Ww, Nw, Cw
• CRI：>80
• Viewing Angle：120 Degree
• Pf：>90
• Lm/W：>95
• Transport Package：White Box, Standard Carton
• Specification：CE ROHS
• Trademark：OED
• Origin：Shanghai
• HS Code：94054090
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. OED-DC-20W Application Home Furnishing, Engineering, Shops Certification CE, RoHS Voltage 85-256V Applicable Places Restaurant Color Ww, Nw, Cw CRI >80 Viewing Angle 120 Degree Pf >90 Lm/W >95 Transport Package White Box/ Standard Carton Specification CE ROHS Trademark OED Origin Shanghai HS Code 94054090 Production Capacity 1000PCS/Month

Product Description

20W COB rectangular  flexible LED shop light


Model No. OED-DC-20W
Input Voltage: AC85~265V± 10%; 50/60Hz;
Input Power: 20W
Lumens: 1750-1850LM
Lamp size: 205(L)× 133(W)× 70(H)mm
Assembling size:173(L)× 108(W)mm
LED type: COB LED module
Chip brand: BRIDGELUX
CRI. Ra. >80

Driver Efficiency: >86%
Power Factor: >0.95
Defend grade: IP20
Beam angle: 140
Net weight: 1.30kg
Packing: 68*25*40CM, 12PCS/ carton, 16KGS/CTN

Features:

1. The shell is made of aluminum alloy die-casting, surface spray, durable, not easy to knock bad; And it thick upright, smooth, no edges, cracks, heat transfer effect is good.

2.4mm tempered glass, with high-quality silicone pads, solid and reliable;

3.Reflector using imported aluminum stamping, reflective effect is superb;

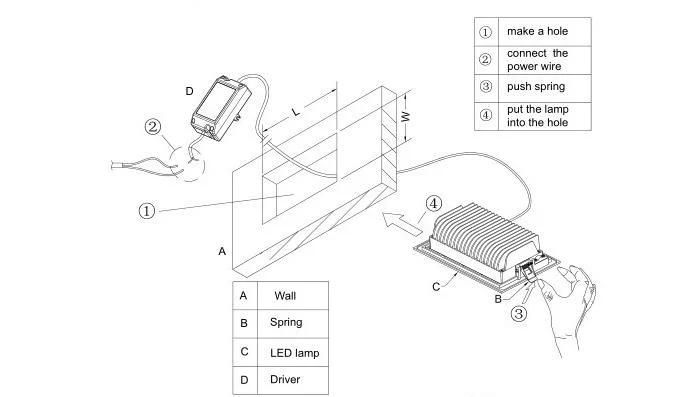

4.Angle bracket can be rotated 90 degrees for easy installation;

5.A full set of stainless steel screws, never rust;

6. Rotating LED down lights can be placed in the ceiling or furniture around the upper part can also be placed in the wall. The light shines directly on the object needs to be emphasized, in order to highlight the role of subjective aesthetic, to focused, unique environment, rich layers, rich atmosphere, colorful artistic effects. Light, soft, elegant, can play a leading role on the overall lighting, but also local lighting, heighten the atmosphere.Color rendering index>80,More true color appeared.

7. Certified by,CE,ROHS,FCC.




      Application:

         Factories, shopping malls, subway stations, hotels, tunnels, gardens, landscape lighting, landmarks lighting, stadium, pier, billboards, buildings, parking and other needs of long-range floodlight outdoor lighting.


Cautions:
1.  Do not take apart the lamp without our permit;
2. Do not tear up the date label for warranty;
3. Do not stare at the strong light for a long time as it may cause injury to your eyes;
4. No-dimmable.
