• Model NO.：WD-DL-9096
• Application：Home Furnishing, Engineering, Store, Showcase
• Certification：CE, RoHS
• Voltage：220-240V
• Applicable Places：Washroom, Aisle, Balcony, Living Room, Restaurant, Study Room, Bedroom
• Warranty：2 Years
• Certificate：Ce & RoHS
• Bean Angle：24
• Transport Package：Customized Packing , Neutro-Packing
• Specification：Diameter 85*H 62.5 mm
• Trademark：World-Dawn
• Origin：Guangdong
• HS Code：9405409000

Basic Info.

Model NO. WD-DL-9096 Application Home Furnishing, Engineering, Store, Showcase Certification CE, RoHS Voltage 220-240V Applicable Places Washroom, Aisle, Balcony, Living Room, Restaurant, Study Room, Bedroom Warranty 2 Years Certificate Ce & RoHS Bean Angle 24 Transport Package Customized Packing / Neutro-Packing Specification Diameter 85*H 62.5 mm Trademark World-Dawn Origin Guangdong HS Code 9405409000

Product Description

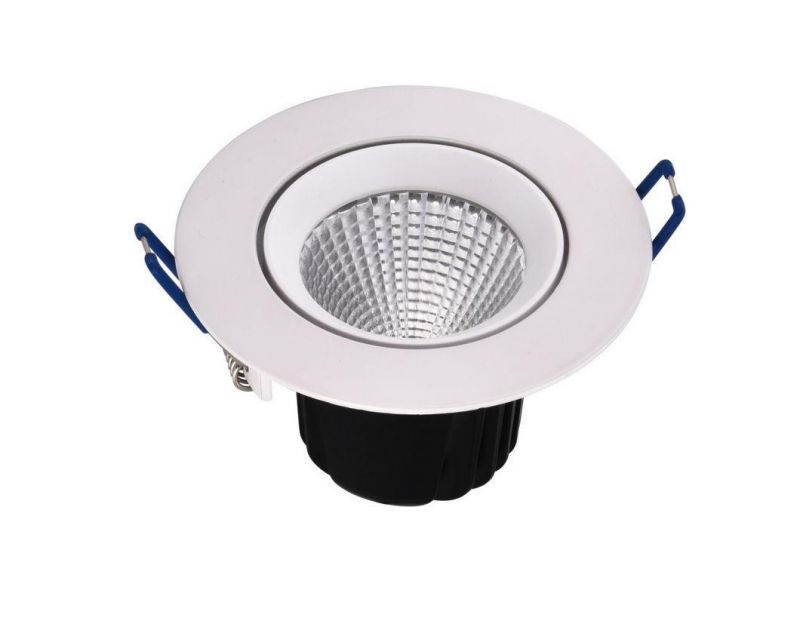

COB LED Downlight  Embedded COB Down Light

Specification:

• Model: LED COB ceiling downlight /LED Down Light (WD-DL-9096)
• Power:5W /8W / 12W
• Colour: 3000K/4100K/5000K
• Input Voltage: 220-240V / AC
• Luminous Intensity: 75 (LM)/W
• CRI:  ≥80
• Body Material: Aluminum+PC
• Beam Angle:24
• Case color: white shell+black radiator
• Excellent luminous efficiency
• 2 years warranty

1.What is COB ?

Chip-on-Board, or COB, refers to the semiconductor assembly technology wherein the microchip or die is directly mounted on and electrically interconnected to its final circuit board, instead of undergoing traditional assembly or packaging as an individual IC. The elimination of conventional device packaging from COB assemblies simplifies the overall process of designing and manufacturing the final product, as well as improves its performance as a result of the shorter interconnection paths.
2. What is COB Advantage ?
1) Reduced space requirements;
2) Reduced cost;
3) Better performance due to decreased interconnection lengths and resistances;
4) Higher reliability due to better heat distribution and a lower number of solder joints;
5) Shorter time-to-market



About Products:





Application:

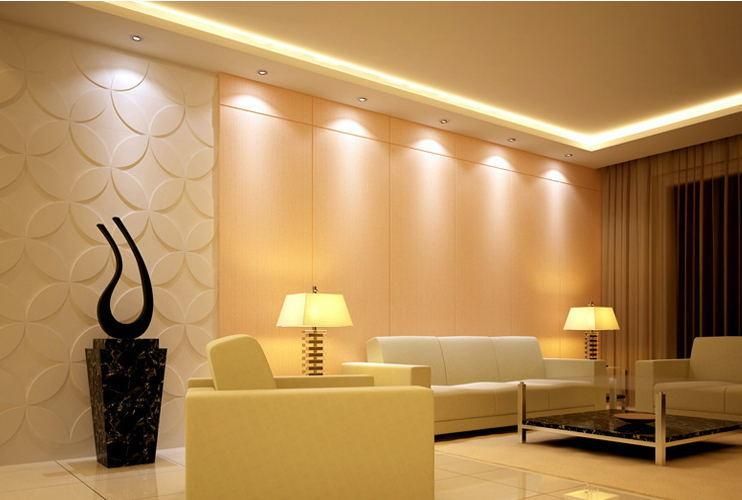

General commercial & architectural lighting, hotel, restaurant, shop, office, theater, garage, hospital, corridor, library and warehouse etc.
