3 Lighting Class Delight Solar Energy Power Desk Reading Table Lamp Book Light 5 Years Warranty

Shenzhen Just-Solar Co., Ltd.
  • Light Source：LED
  • Material：ABS
  • Style：Modern
  • Type：Portable
  • Lamp Holder：Support
  • Power Source：Solar

Base Info

  • Model NO.：JS-SunGold Standard
  • Switch Type：Push-button Switch
  • Battery Type：Rechargeable Battery
  • Power：≤5W
  • Certification：UL, RoHS, VDE, GS, CE
  • With Light Source：With Light Source
  • Solar Panel：1.5W,4.7V
  • Battery：1000mAh,3.2V LiFePO4
  • LED：8PCS, 0.8W, 80lm
  • Characteristic：3 Lighting Class
  • Charging Time：Solar Panel 3-4 Hours, AC 2 Hours
  • Working Time：3-12 Hours
  • Product Color：Optional
  • Transport Package：Color Box
  • Specification：24pcs,carton
  • Trademark：JUST or OEM
  • Origin：Shenzhen
  • HS Code：851310900
  • Production Capacity：10000PCS,Month

Description

solar panel1.5W/4.7V monocrystallinebattery3.2V/1000mAh LiFePO4 batterylight source0.8W LED, 80LMworking time3-12hours (depend on different brightness mode)charging time2 hours 90%; 3-4 hours 100%
Specification
Solar Panel:1.5W/4.7V monocrystalline silicone with 5m cable
Battery:1000mAh/3.2V LiFePO4
Lightness: 3 steps dimmable
LED: 8pcs
Brightness-Highest:80LM
High efficiency solar panel
Three steps of dimmable lumen
Micro-programmed Control Unit providing protection from over voltage, over current, over charge, over discharge and short-circuit
Low voltage remind
360 angles lighting
With USB mobile charging function
IP rate: IP65
Accessories:3 in 1 mobile charge cable

Package
Inner box size:12*6.5*18cm
carton size:54*28*38cm
24pcs/carton
N.W.:  14.7  KG
G.W.:  15.5  KG

Packing Parts
solar reading lamp: 1pc
Instruction+warranty card: 1pc
USB charging wire:optional

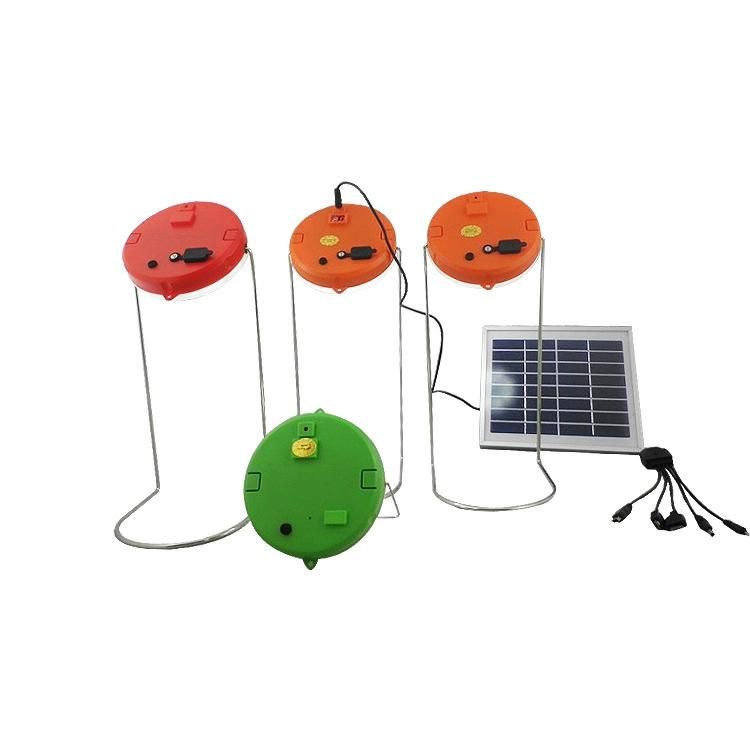

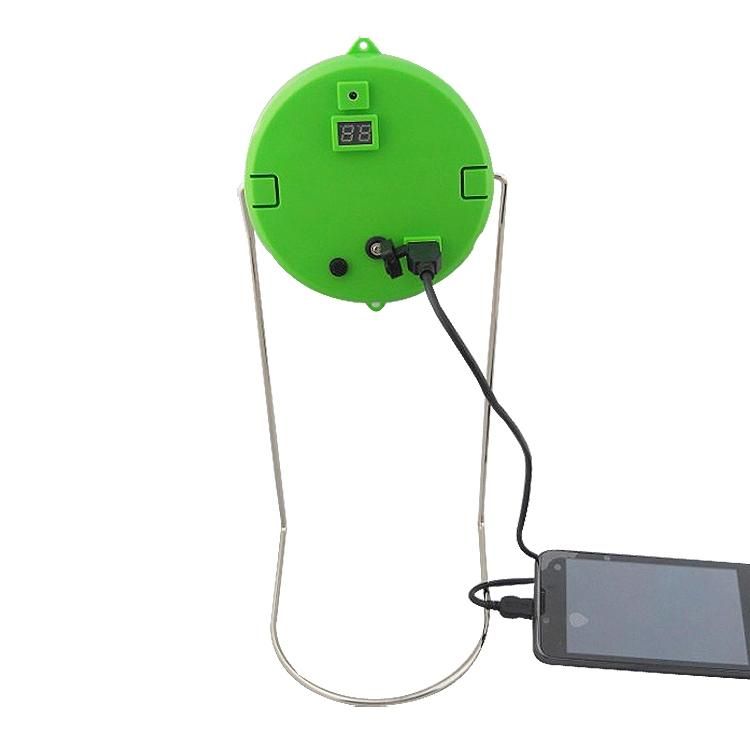

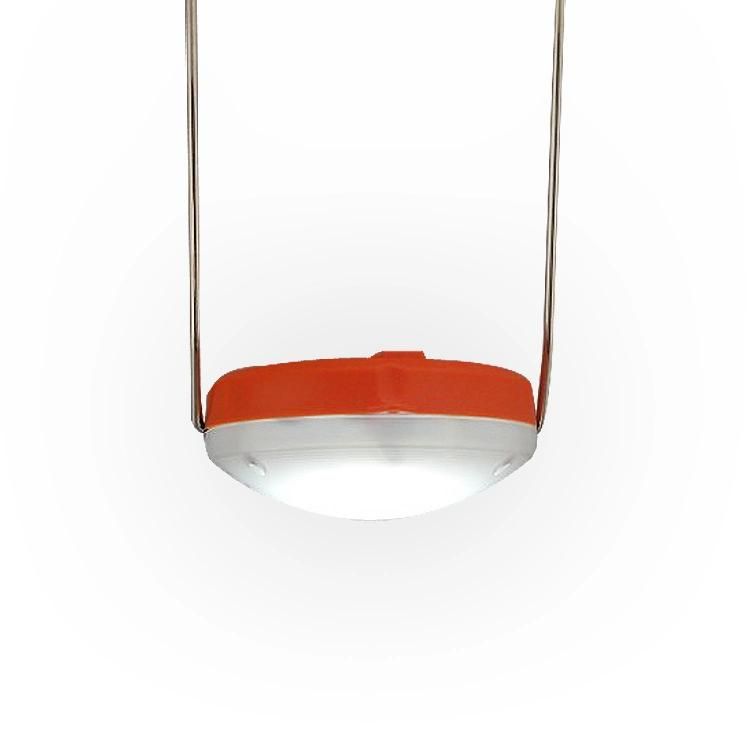

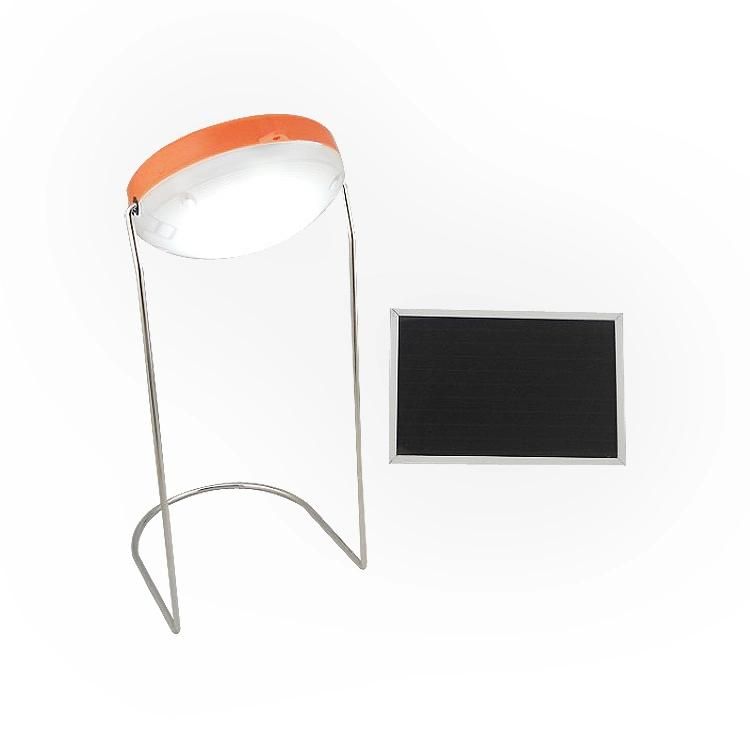

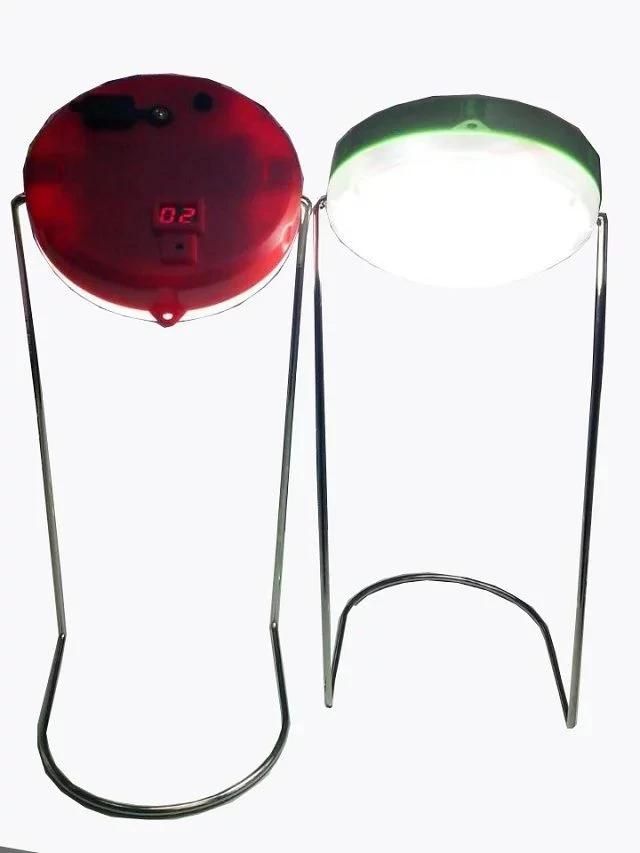

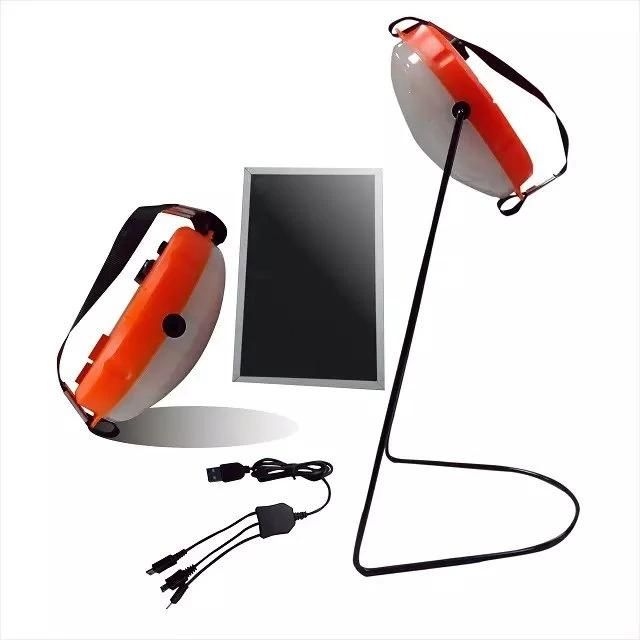

Product Photos
3 Lighting Class Delight Solar Energy Power Desk Reading Table Lamp Book Light 5 Years Warranty
3 Lighting Class Delight Solar Energy Power Desk Reading Table Lamp Book Light 5 Years Warranty
3 Lighting Class Delight Solar Energy Power Desk Reading Table Lamp Book Light 5 Years Warranty
3 Lighting Class Delight Solar Energy Power Desk Reading Table Lamp Book Light 5 Years Warranty
3 Lighting Class Delight Solar Energy Power Desk Reading Table Lamp Book Light 5 Years Warranty
3 Lighting Class Delight Solar Energy Power Desk Reading Table Lamp Book Light 5 Years Warranty



Quality Assurance Parts: solar panel, Battery, LED Lamp, PCB, Wires

Solar panel:

mono or poly cell crystalline, enough free electron in Silicon atom, the free electron absorb light photon and released, aluminum alloy frame, tempered glass cover, IEC61215, IEC61730 TUV test report, warranty 5 years, life-time with the efficiency: 10 years 100%, 20 years 90%, 30 years 8%;

Battery:

Lithium battery, 1.8*1.8*6.5cm standard size, 800-1000 time circles, made in Japan, wide work temperature, 12 months don't need to charge when in selling; warranty: 2 years, life-time:3-5 years 90% capacity, 5-8 years 80% capacity;

LED Lamp:

Lamp Crust: Aluminum alloy for hot dissipation(not for plastic crust), LED chips: famous brand in high efficiency(high light-electricity transformation); LED chips board: aluminum, to keep hot transmitting,(heat conductivity coefficient:1.5W, thickness:1.0mm)

(Work temperature decide the life-time of LED chips, hot transmitting and dissipation is necessary for a long life-time LED lamp, 36sqcm hot dissipation area for 1W is standard)

Warranty 2 years, life-time: 5 years 100%, 8 years 90%, 10 years 80%

PCB:

Board material: Glass fiber board, Function: battery over-charge and over-discharge protection, Constant current discharge for LED lighting, "LED indicator" for charging status, 5V/1A IC to protect charging current, IC component control for each group of LED lighting; warranty 5 years; life-time: more than 10 years;

Wires:

China Standard 3mm-4mm copper material wire, low resistance and long life-time, DC and AC current allowed, switch controller, E22,E27,B22 LED lamp holder; warranty 5 years, life-time: more than 10 years
