Popular 3W-4.5ah Home or Outdoor Using Portable Solar Lighting System
Yangzhou Intelligence Solar Group Co., Ltd.- Output Voltage (V):DC12V
- Solar Panel (W):3W (9V)
- Battery(Ah):6V 4.5ah Sealed Lead Acid
- Bulbs:2PCS DC12V 0.9W
- Certificate:IEC Ec RoHS Soncap Pvoc Coc Saso FCC
- Warranty:3 Years
Base Info
- Model NO.:AS 3W-4.5Ah
- Transport Package:Standard Export Carton with Foam Inside
- Specification:480*280*410mm (12PCs)
- Trademark:AS SOLAR
- Origin:Jiangsu, China(Mainland)
- Production Capacity:50000 Pieces,Year
Description
Basic Info.
Model NO. AS 3W-4.5Ah Transport Package Standard Export Carton with Foam Inside Specification 480*280*410mm (12PCs) Trademark AS SOLAR Origin Jiangsu, China(Mainland) Production Capacity 50000 Pieces/YearProduct Description

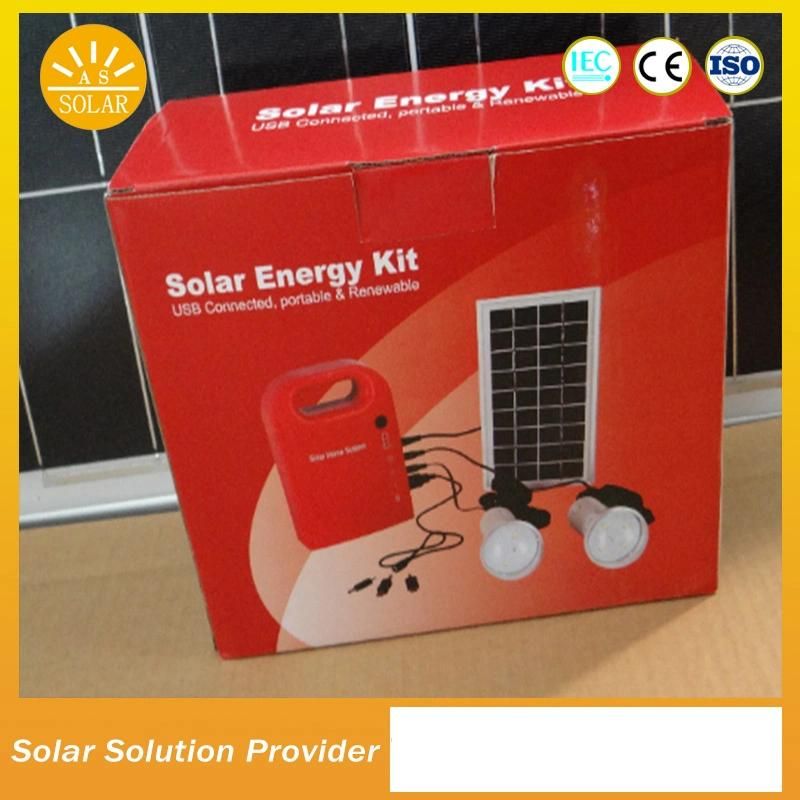

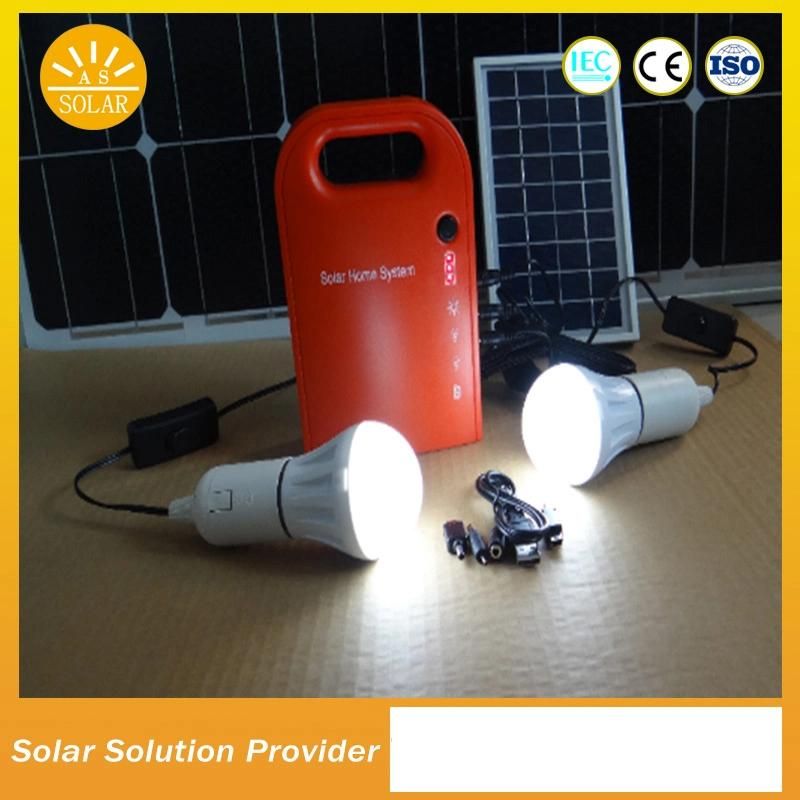

AS 3W-4.5AH Solar Home Lighting KitsThe system allocates high capacity battery, lighting time when fully charged please see the chart as below.
Quantity of bulbs | Lighting time when fully charged |
1 PC | 30 hours |
2 PCs | 15 hours |
The system choose high bright bulbs with 100LM above, Equal to 25W incandescent lamp.
Battery capacity indicator:
3 indicator lights being on: 50~100%
2 indicator lights being on: 20~50%
1 indicator light being on: <20%
System charged
Charge the system by using solar panel, you can refer to the below steps:
- Place the Solar Panel in the sun where can receive the strongest sunlight
- Plug the panel cable into the socket which marked, when indicator light twinkles slowly, that means charging normally.
Operation steps :
1.Plug the USB into the port which marked
2.Connect the mobile phone through the connector.
Specification
Size of Controlling Box | 126*57*185mm 0.92kg |
Solar Panel | 3W/9V Vmp: 8.7V; lmp:0.35A; Voc:10.8V; Isc0.37A Dimension 210*130*18mm Weight:0.38kg |
Panel Cable | 3M Length |
Battery | 6V/4.5AH Lead-acid |
Bulbs | 0.9W 100LM 0.06kg*2 |
Color Temperature of Bulbs | 6000-7000K |
Bulb Cable | 3M Length |
USB Output | 5V/500ma |
Color Box Size | 230*85*190mm 0.12kg |
Net Weight of System | 1.42kg |
Gross Weight of System | 1.54kg |
Carton Size | 480*280*410mm (12PCs) |
Net weight | 17.04kg |
Gross Weight | 18.48kg |
Battery maintenance and using skill
The system uses a 6V 4.5Ah lead-acid Maintenance- Free rechargeable battery
In order to keep the longest lifespan.
1. Please don't keep the battery in over- discharged status for a long time.
2. Please charge the battery at least one time every 3 months, even you don't use it .
3. When replace battery, please only use 6V lead-acid battery, and under guiding by
professional person.
