• Model NO.：ITT 2000W 235V-01Y0 K
• Certification：CE, RoHS, UL, ISO
• Voltage：110-240V
• Applicable Places：Industrial
• Heated Length：285mm
• Quartz Tube：10mm
• Wave Length：Short Wave
• Life Time：8000 Hours
• Mounting：Vertical and Horizontal

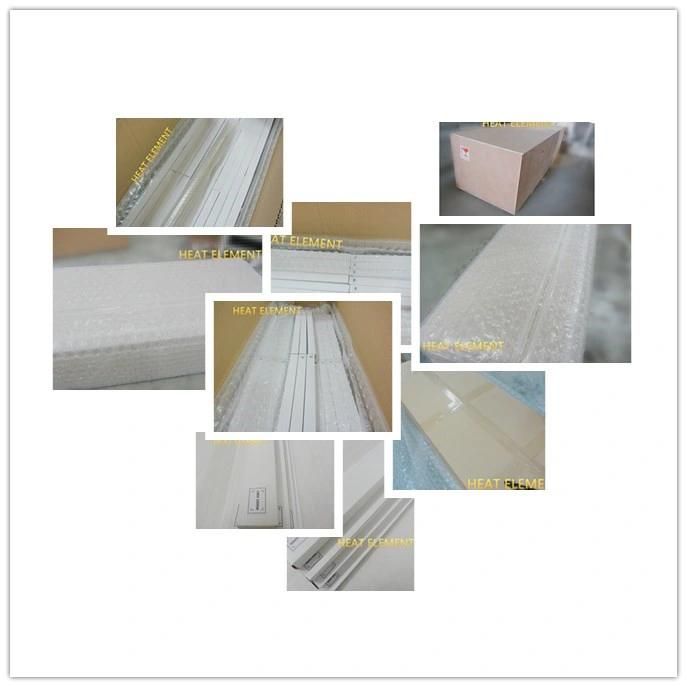

• Standard Packing：Gift Box,Nerural White Box
• Brand Name：Heat Element
• Transport Package：Carton
• Specification：CE, UL, Vir235-2000-Y-Srw
• Trademark：HeatElement
• Origin：Shanghai, China
• HS Code：853949000
• Production Capacity：5000 PCS, Day

Basic Info.

Model NO. ITT 2000W 235V-01Y0 K Certification CE, RoHS, UL, ISO Voltage 110-240V Applicable Places Industrial Heated Length 285mm Quartz Tube 10mm Wave Length Short Wave Life Time 8000 Hours Mounting Vertical and Horizontal Standard Packing Gift Box/Nerural White Box Brand Name Heat Element Transport Package Carton Specification CE, UL, Vir235-2000-Y-Srw Trademark HeatElement Origin Shanghai, China HS Code 853949000 Production Capacity 5000 PCS/ Day

Product Description

Features:
 Halogen type
 The ideal, high-power heat source for a wide range of industrial heating applications
 Economic heat source, 90% of energy is transmitted as Infrared heat
 Short wave Infrared radiates
 Clean, Safe, Green
 Compact Infrared heat source
 Fast response, reaching 100% power after be electrified and fast to reducing the temperature
 Long Lifetime

Benefits:
Without white reflector IR heat lamp radiate 50% of the infrared radiation to the rear and 50 forwards.
Consequently, only 50% of the potential radiation is available to heat a surface. With the VIRITT
White reflector IR heat lamp 80% of the available radiation is directed at the workpiece surface.

Applications:
 Space heating
 Drying of lacquer, paint, printing ink
 Curing, oven
 Plastic thermoforming
 Blowing of PETP
