• Model NO.：YC-TD
• Application：Home Furnishing
• Certification：CE, RoHS, EMC
• Voltage：100-240V
• Applicable Places：Aisle, Kitchen, Balcony, Conference Room, Living Room, Restaurant, Study Room
• PF：0.90
• Warranty：3 Years
• Emitting Angle：120 Degree
• CRI：80
• Lumens：100lm,W
• Transport Package：Carton
• Specification：CE ROHS
• Trademark：YC
• Origin：China
• HS Code：9405409000
• Production Capacity：50000PCS,Month

watvoltagesize(mm)holes(mm)led sourcemateriallumensPFDriver6wac100-240vD90*4570SMD5630AL90lm/w0.9isolate driver10wac100-240vD105*6585SMD5630AL90lm/w0.9isolate driver15wac100-240vD130*68105SMD5630AL90lm/w0.9isolate driver20wac100-240vD165*90140SMD5630AL90lm/w0.9isolate driver30wac100-240vD190*95165SMD5630AL90lm/w0.9isolate driver35wac100-240vD225*105200SMD5630AL90lm/w0.9isolate driver

Advantage

1.use high stability constant current driver to ensure lamp lifetime(isolate driver)

2.eneregy saving.low power consumption,more than 80% energy saving than traditional incandescent lamp,more than 55% energy saving than fluorescent lamp

3.environmental protection.no stroboscopic,no uv,infrared radiation,low carlorie,no mercury.no harmful substance during use

4. simply to install-recessed installation

5.more faster produce time: only 3-5 days

6.longer warranty: 3 years

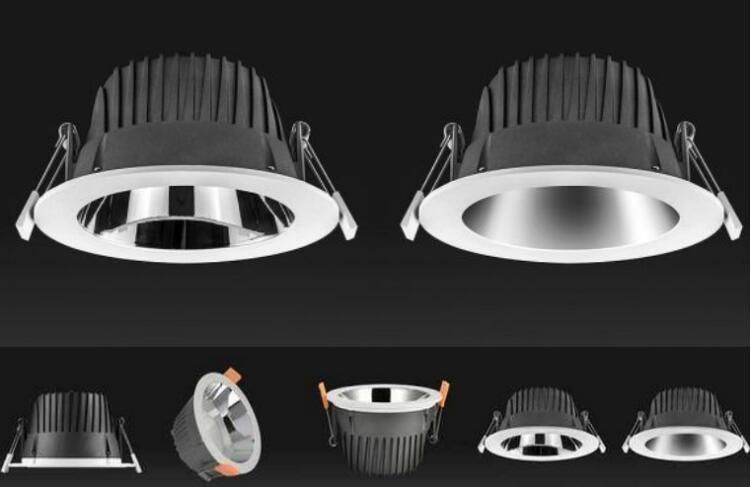

More picture( led downlights 6w)

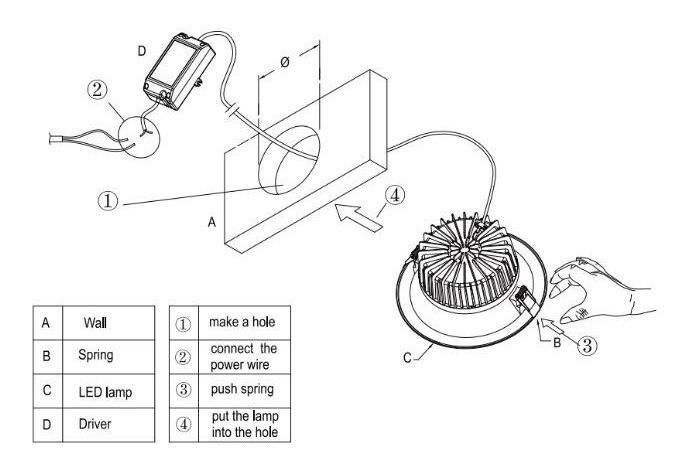

Installation step (recessed  led downlights series)

application

used for commercial.shop,hotel,exhibition hall,art hall,museum.office and other place

FAQ for led downlights 6W series

Q1:what is our main products

R: we produce led commercial lighting mainly.include Cob and SMD led downlights,led spotlight,led pl lamp ,led corn bulb,led floodlights and so on

Q2.May i have a samples for test?

R: sample is accept, no MOQ restriction

Q2:can we design the package for the customers?

R.yes,we can design it by oursalf or following customer draft to produce the packaged box

Q3:How to solve the defective?

R: 1,our led downlights  price is very compeitive. offer 3 years warranty

2,in strict quality control system and less than 0.2% defect rate,

3.during warranty time. if defect, will arrange  to produce new goods and send to Customer directly

Q4: what is the shippment and the payment terms?

1.delivery by DHL/ UPS / FEDEX / sea or  air, following customer demand, we choose the delivery way

2.Payment method: western union & T/T & Paypal & moneygram, all is accept

Q5: what is certification for led downlights?

R; CE certificaiton(LVD AND EMC are passed) and ROHS

our aging picture
