• Application：Home Furnishing
• Certification：CE, RoHS, EMC
• Applicable Places：Washroom, Conference Room, Living Room, Restaurant, Study Room
• Base Type：G24 & E27
• Wat：11W
• Size：D34*172mm
• Lumens：1150lm
• Replacement：CFL 26W
• CRI：82
• Warranty：3 Years
• Transport Package：Carton Box
• Specification：ce & rohs
• Trademark：yc
• Origin：China
• HS Code：9409509000
• Production Capacity：50000, Months

watvoltagesize(mm)materiallumensled Qtybase typereplacement5wac100-240vD34*120AL100lm/w16E27/G24QPLC-10W7wac100-240vD34*144al100lm/w20E27/G24QPLC-13W9wac100-240vD34*158al100lm/w24E27/G24QPLC-18W11wac100-240vD34*172al100lm/w28E27/G24QPLC-26W

Product features:

·1,Independent development of long-life IC power supply. Set up multiple protective measures of lightning, surge, high temperature, high pressure and flow to ensure that the whole lamp life of 30000 hours at least. ·2,Good electromagnetic compatibility, no high frequency electromagnetic radiation, ultra low current harmonic content, excellent EMC characteristics, can be safely used in high precision equipment environment. 3,Super wide working temperature range, can be normal and safe used in the environment of -45ºC to 55ºC. 4,The LED adopts 12*35 large chip, pure gold wire and PCT support to ensure high brightness, fast heat dissipation, high temperature resistance and deathless lamp. ·5,LED is high display Ra ≥ 82, light efficiency ≥ 120LM/W, ensure the chip is A level of high brightness. ·6,High quality aluminum substrate, high pressure resistance ≥ 4000V. Heat-resistant PC cover, double insulation, increased security. ·7,6063-T aluminum radiator, fast heat conduction. Large area heat sinks are excellent for controlling light decay. ·8,It is the same size and lamp holder as the glass fluorescent lamp. PLS glass fluorescent tube can be replaced directly. [magnetic ballast]

9.The lamp holder can rotate, about 160 degrees each.

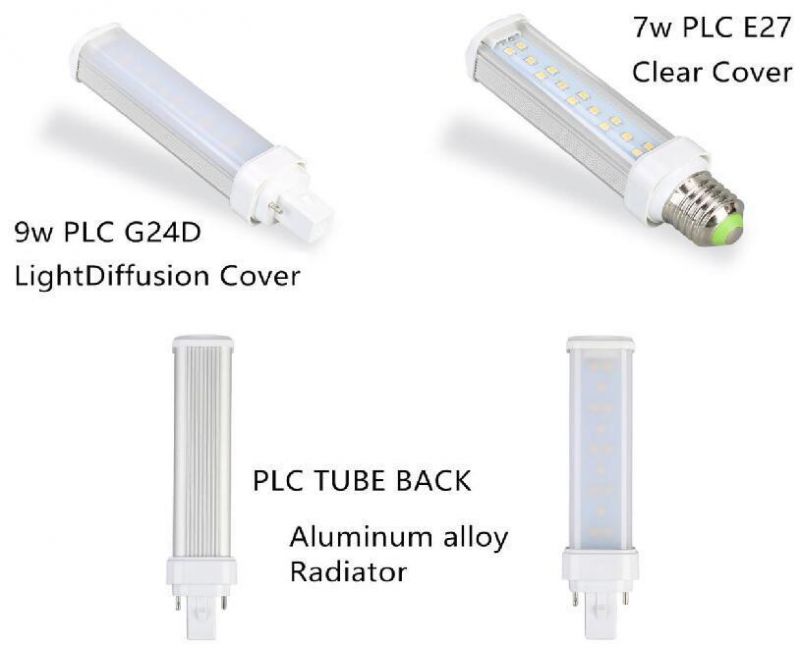

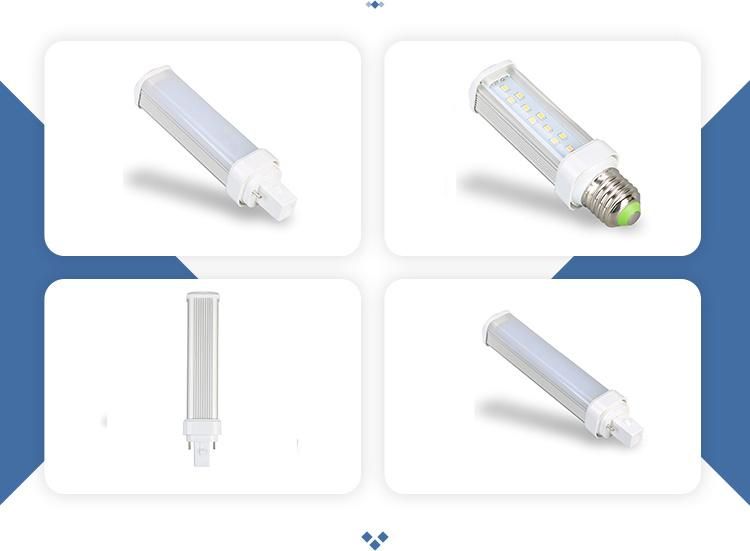

Product display






Adantages for 11W G24 led pl lamp



1. meet more base type: G24 2pin/G24 2pin/g23/E27
2. Warranty: 3 years
3. Rotate the base type.:About 160 degree
4. same length as for the 26W CFL, perfect to replace CFL 26W(see the below picture)

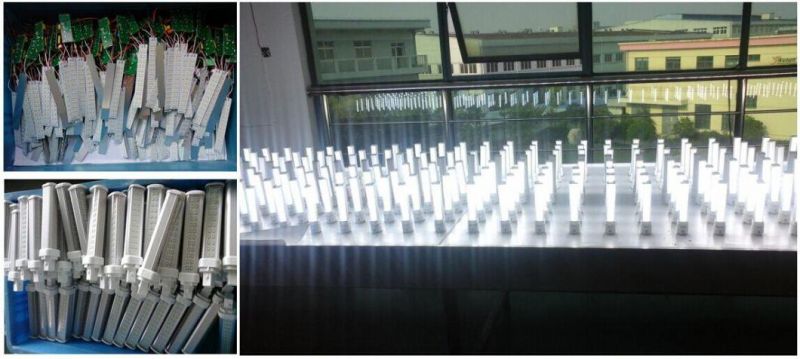

Aging picture

Payment:
accept T/T & paypal & western union & moneygram

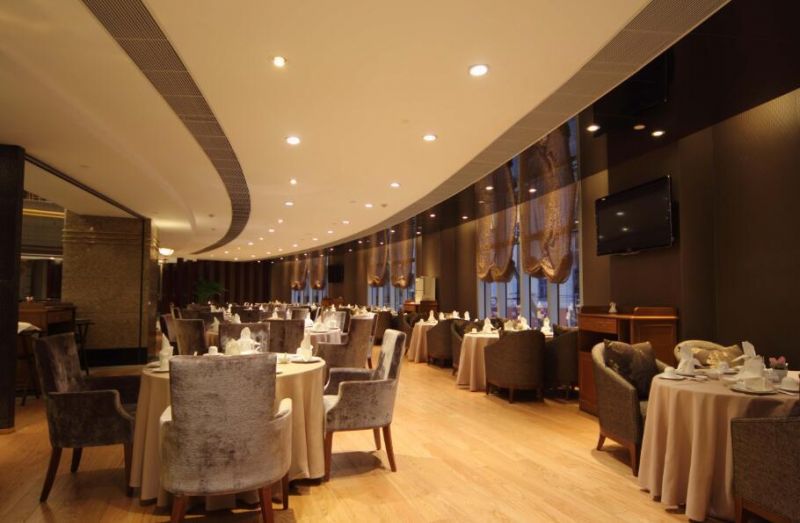

Application

Directly replace CFL lamp without refitting the original right, suitable for general lighting in such places as homes, office buildings, hospitals, hotels, lobbies and for other commercial lighting usage

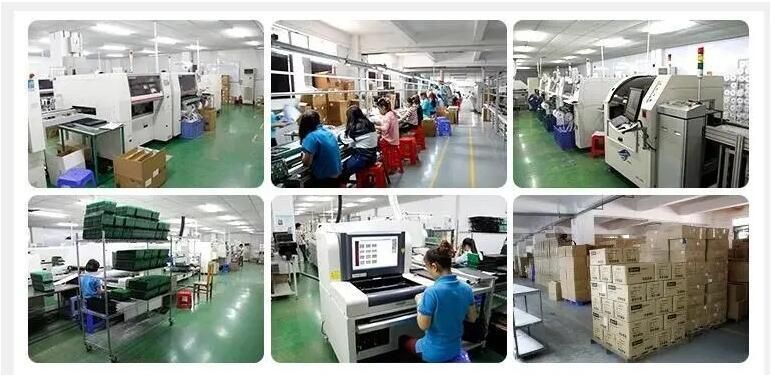

Factory news
Guangzhou yi can Lighting Co., Ltd., is a professional LED lighting enterprise, integrated R&D, production & sales and aftersales service. We devote ourself to Environmental protection & energy saving & create beautiful world.

Established our company at auguest 2012, we have more than 8 years produce & export experience at LED lighitng industry, At present. Our main goods include LED UV Lamp & LED track lights & LED downlight & LED PL light with Annual production quantity 5 000 000 pcs, All of thosed are passed CE & RoHS, all of our goods widely used in supermarket, hotels, office and family kitchen corridor and so on, for support our customer to get right goods. We support samples order which is deliveryed in 3-4 days and offer OEM/ODM service, all of goods offer 3-5 years warranty

Our goal is high quality & competitive price & perect after-sale service. Now, Over 90% of the goods are exported to Europe, North America. Japan and other countries, meanwhile they are earn the good reputation

Quality is our life, service is our soul. Choose Yi can lighting, choose our green life. Welcome to your inquiry, we will serve for you sincerely.

Love earth, staring from energy saving,

FAQ:
Q1. can i have a sample for this led pl lights?
yes. welcome to take sample to test, mixed samples are acceptable
Q2. how about the lead time?
sample:3-5 days. mass production time needs about 7-10 working days
Q3.Do you have any MOQ request???
 our MOQ is 1 pcs
Q4. how to delivery to you and how long will be cost from china to your hand?
if samples: delivery by DHL/UPS/Fedex,. normally. cost about 3-5 days
Q5. is ok to engrave our logo on???
 yes, we can engravc Customer logo on,
Q6.how to deal with the fault?
1.first: our led PL lights are produced under strictly quality control system and our detective rate is less than 0.2%
2.before delivery, we will cost about 24 hours aging and strict test,after that, we can delivery it
3.during warranty time, if non-working, we will produce new and sent to you with our next order
