• Model NO.：YC-TDSMD-24
• Pf：0.90
• Transport Package：Carton
• Specification：CE ROHS
• Trademark：YC
• Origin：China
• HS Code：9405409000
• Production Capacity：50000PCS,Month

Basic Info.

Model NO. YC-TDSMD-24 Pf 0.90 Transport Package Carton Specification CE ROHS Trademark YC Origin China HS Code 9405409000 Production Capacity 50000PCS/Month

Product Description

24W LED Down lights (YC-TDSMD-24)

The downlight used  diffuser cover, which has good light transmittance, uniform light transmission, and no dark areas. The radiator is made of profile or aluminum die-casting. The strong convection design solves the heat dissipation problem and guarantees the long life of the light source. The lamp beads have high lumen and low light decay and long life.

Item No	Power	Lumen	Size	Chip	CCT	Voltage	Material
YC-TDSMD-5	5W	100LM/W	φ90*55mm hole75mm	SMD5630	2700-6500K	100-240V	AL+PC
YC-TDSMD-7	7W	100LM/W	φ100*55mm hole80mm	SMD5630	2700-6500K	100-240V	AL+PC
YC-TDSMD-9	9W	100LM/W	φ115*55mm hole100mm	SMD5630	2700-6500K	100-240V	AL+PC
YC-TDSMD-12	12W	100LM/W	φ130*67mm hole110mm	SMD5630	2700-6500K	100-240V	AL+PC
YC-TDSMD-15	15W	100LM/W	φ160*75mm hole140mm	SMD5630	2700-6500K	100-240V	AL+PC
YC-TDSMD-18	18W	100LM/W	φ180*75mm hole160mm	SMD5630	2700-6500K	100-240V	AL+PC
YC-TDSMD-20	20W	100LM/W	φ190*75mm hole170mm	SMD5630	2700-6500K	100-240V	AL+PC
YC-TDSMD-24	24W	100LM/W	φ200*80mm hole180mm	SMD5630	2700-6500K	100-240V	AL+PC
YC-TDSMD-30	30W	100LM/W	φ230*85mm hole210mm	SMD5630	2700-6500K	100-240V	AL+PC
YC-TDSMD-40	40W	100LM/W	φ240*90mm hole220mm	SMD5630	2700-6500K	100-240V	AL+PC
YC-TDSMD-50	50W	100LM/W	φ300*100mm hole260mm	SMD5630	2700-6500K	100-240V	AL+PC

Fundamental

1. Model: YC-TDSMD-24
2, Size: 200mm*80mm cut 180mm
3. Material: Aluminum+pc
4. Operating Temperature: -20-55degree
5. Life time: >35000hours

Relative info for 24W SMD LED downlight

Electronic

1. Operating voltage: AC100-240V
2. Power: 24W
3. Power factor: 0.90

Photometric

1. Type of -house: 5630SMD
2. Nos. Of lamp-house: 48PCS
3. Luminous flux: 2400lm
4. Luminous efficacy: 100lm/w
5. Beam angle: 110 degree

Chromaticity

1. Colors of lamp-house: WW/DW/CW
2. Ra: 75

Adantages
1. One for one driver supply
2. Higher brightness
3. Standard: CE, RoHS.
4. Warranty: 3 years

Features of led downlight

1. Long life time, up to 35000hours
2. Saving energy 90% than incandescent light
Saving energy 75% than energy saving light
3. Green light source, without ultraviolet and infrared in potical spectrum, electronic luminescence, no strobe flashing, no radiation.
4. Eco-friendly, no hg content, pb content<1000ppm, DC driver, no electromagnetic radiation, and recyclale




Use of the products

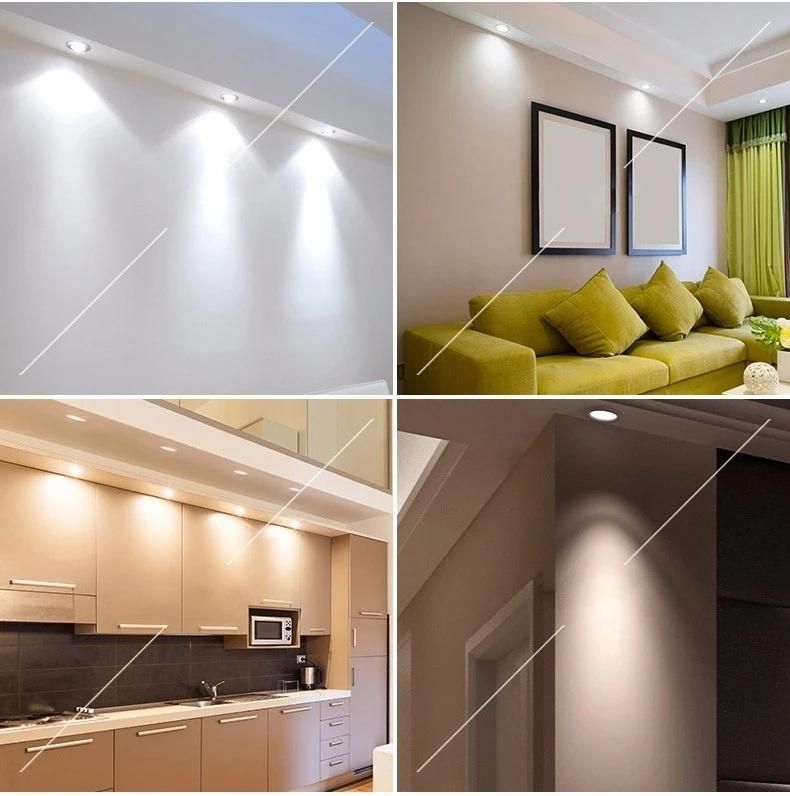

Hotels, home, restaurant, kitchen, hallway lighting and other places


FAQ
Q1. can i have a sample for this led track lights?
yes. welcome to take sample to test, mixed samples are acceptable
Q2. how about the lead time?
sample:3-5 days. mass production time needs about 7-10 days
Q3.Do you have any MOQ request???
 our MOQ is 1 pcs
Q4. how to delivery to you and how long will be cost from china to your hand?
if samples: delivery by DHL/UPS/Fedex,. normally. cost about 3-5 days
Q5. is ok to engrave our logo on???
 yes, we can engravc Customer logo on,
6.how to deal with the fault?
1.first: our led track lights are produced under strictly quality control system and our detective rate is less than 0.2%

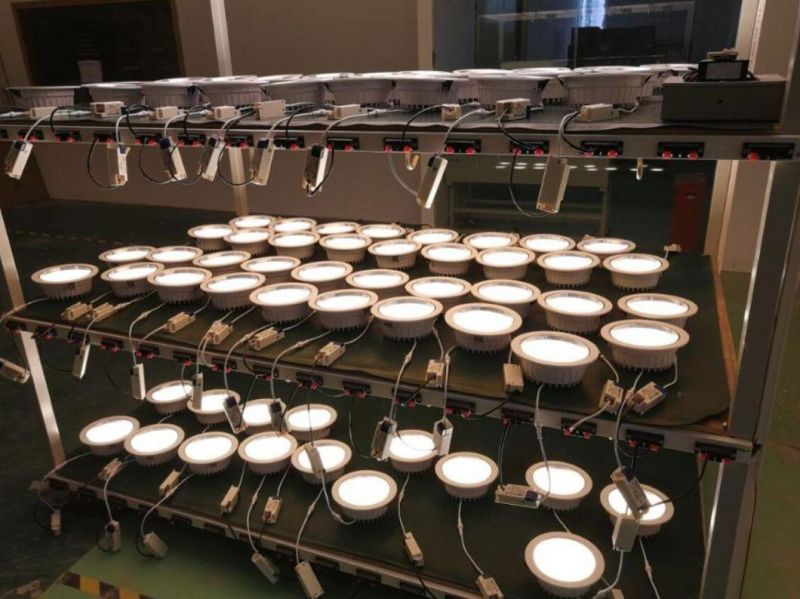

2.before delivery, we will cost about 24 hours aging and strict test,after that, we can delivery it
3.during warranty time, if non-working, we will produce new and sent to you with our next order
