Indoor Suspended Office Lighting 1.2m 40W LED Linear Light with Seamless Connection
Shenzhen Enrich Lighting Co., Ltd.- Light Source：LED
- Material：Aluminum Alloy
- Style：Modern
- Quantity of Lights：More than 10
- Frame Material：Aluminium Alloy
- Frame Color：White
Base Info
- Model NO.：EN-7575
- Certification：CE, CCC, RoHS, TUV, SAA
- Beaming Angle：120°
- With Light Source：With Light Source

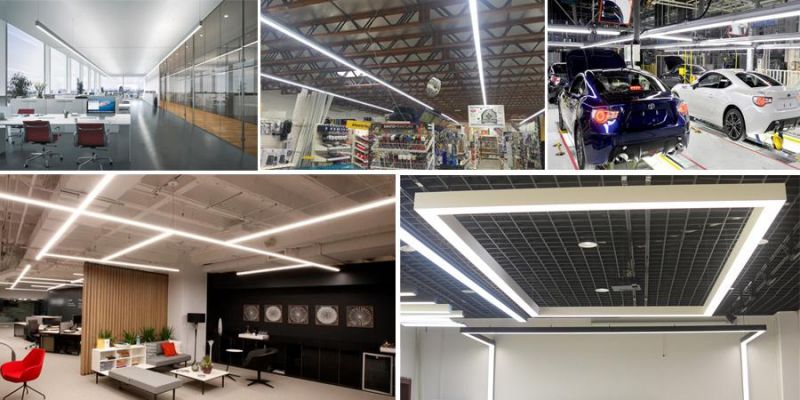

- Applicable Places：Supermarket, Office, Stores ..and So on
- Name：LED Hanging Trunking Light
- Input Voltage：AC100-240V
- LED Chip：SMD 2835
- Wattage：36W,40W,48W
- Beam Angle：120°
- Luminous Efficiency：100 Lm ,W
- CRI：>80
- Driver：Ce, TUV, SAA
- Warranty：3 Years
- IP Grade：IP40
- Transport Package：Export Standard Packing
- Specification：Export standard packing
- Trademark：Enrich,OEM
- Origin：Shenzhen
- HS Code：9506629000
- Production Capacity：50000PCS,Moth
Description
White
Silver
BlackEN-7575-LS40W12 L1200*W75*H75mm 40W SMD2835 - 288pcs 4200lm EN-7575-LS60W18 L1800*W75*H75mm 60W SMD2835 - 432pcs 6300lm EN-7575-LS80W24 L2400*W75*H75mm 80W SMD2835 - 576pcs 8400lm
led linear hanging trunking light features
1. Lamp body material 6063 aluminum alloy with good heat disspation, anodized surface with the advantage of hard, wear-resistant and not easily scratched.
2. PC lens with high diffusion, soft and comfortable light and good anti- glare effect.
3.Energy saving and environmental protection, more than 65% compared to the traditional lamps.

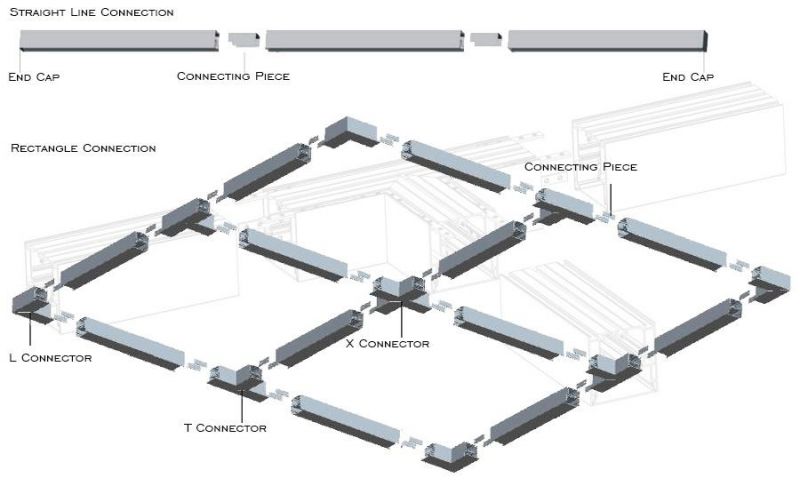

4.180 degree splicing.

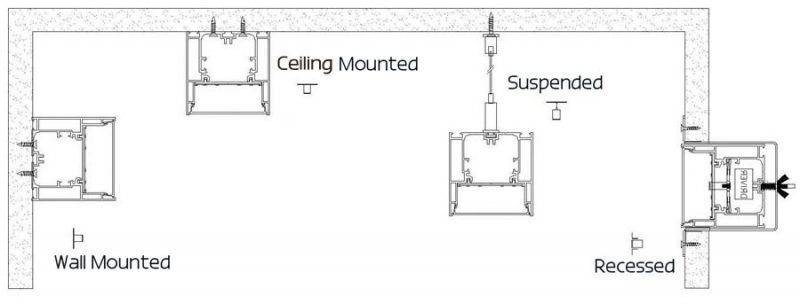

5. Easy installation, with the suspended, ceiling mounted optional, and can be connected to different types.
led linear hanging trunking light installation
A. Ceiling Mounted
1. fix the mounting clip into the ceiling by screw.
2. clip the led trunking lamp into mounting clip.
3.make electrical connection with mains supply.
B. Suspended Mounted
1.Feed wire suspension cable.
2. Adjust the suspension cable on the same level.
3. Make electrical connection.
More Pictures:
Silver
Black
led linear hanging trunking light features
1. Lamp body material 6063 aluminum alloy with good heat disspation, anodized surface with the advantage of hard, wear-resistant and not easily scratched.
2. PC lens with high diffusion, soft and comfortable light and good anti- glare effect.
3.Energy saving and environmental protection, more than 65% compared to the traditional lamps.
4.180 degree splicing.
5. Easy installation, with the suspended, ceiling mounted optional, and can be connected to different types.
led linear hanging trunking light installation
A. Ceiling Mounted
1. fix the mounting clip into the ceiling by screw.
2. clip the led trunking lamp into mounting clip.
3.make electrical connection with mains supply.
B. Suspended Mounted
1.Feed wire suspension cable.
2. Adjust the suspension cable on the same level.
3. Make electrical connection.
