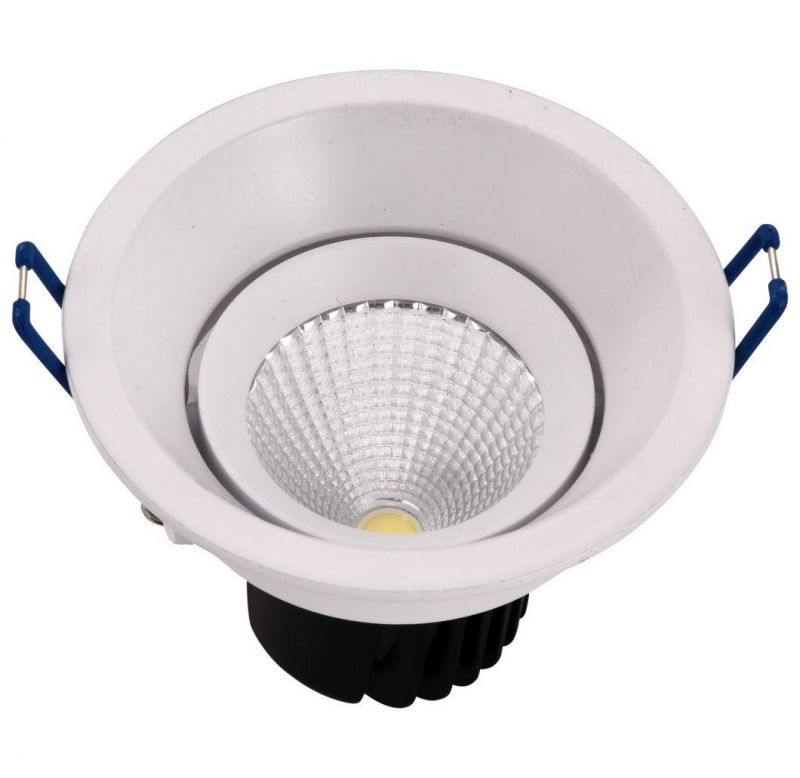

3.5" 8W Recessed LED Downlight (Wd-Dl-9072)
World-Dawn Lighting Co., Limited- Light Source：LED
- Material：Aluminum
- Source Number：Single Plug
- Installation：Embedded
- Lamp Installation：Screw Holder
- Warranty Period：2 years
Base Info
- Model NO.：Wd-Dl-9072
- Application：Home Furnishing, Engineering, Store, Showcase
- Voltage：220-240V
- Applicable Places：Washroom, Aisle, Balcony, Living Room, Restaurant, Study Room, Bedroom
- Warranty：2 Years
- LED COB Light Source：Diameter: 115mm H: 85.5mm
- Color Rendering Index：80
- Certificate：Ce & RoHS
- Input Voltage：220-240V , AC
- Bean Angle：24
- Transport Package：Customized Packing , Neutro-Packing
- Specification：diameter: 85mm H: 75mm
- Trademark：World-Dawn
- Origin：Guangdong
- HS Code：9405409000
Description

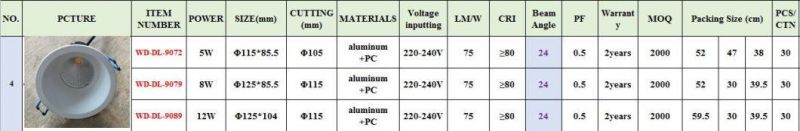

- Model: LED COB ceiling downlight /LED Down Light (WD-DL-9072)
- Power:5W /8W / 12W
- Colour: 3000K/4100K/5000K
- Input Voltage: 220-240V / AC
- Luminous Intensity: 75 (LM)/W
- CRI: ≥80
- Body Material: Aluminum+PC
- Beam Angle:24
- Case color: white shell+black radiator
- Excellent luminous efficiency
- 2 years warranty
1.What is COB ?
Chip-on-Board, or COB, refers to the semiconductor assembly technology wherein the microchip or die is directly mounted on and electrically interconnected to its final circuit board, instead of undergoing traditional assembly or packaging as an individual IC. The elimination of conventional device packaging from COB assemblies simplifies the overall process of designing and manufacturing the final product, as well as improves its performance as a result of the shorter interconnection paths.
2. What is COB Advantage ?
1) Reduced space requirements;
2) Reduced cost;
3) Better performance due to decreased interconnection lengths and resistances;
4) Higher reliability due to better heat distribution and a lower number of solder joints;
5) Shorter time-to-market
About Products:
Application:General commercial & architectural lighting, hotel, restaurant, shop, office, theater, garage, hospital, corridor, library and warehouse etc.
