• Model NO.：BB-RSD-002
• Switch Type：Rotary,Button
• Lamp Holder：2pins
• Product Name：High Power 60W LED Wall Lighting Wall Mount Dlc
• Lighting Source：250PCS 5630 Epistar Chip
• Lamp Base：2pins
• Power Consumption：60W
• Size：13.2"*9.8"*7.9"
• Luminous Flux：8000lm
• Color Temperature Standard：Warm White Natural White Cool White
• Color Rendering Index(CRI)：>75
• Replacement：175W Mh HPS HID
• Application：Buildings ,Lawn ,Factory ,Wall
• Transport Package：Standard Export Box and Carton 4PCS,Carton
• Specification：83*44*64cm
• Trademark：BBIER LIGHTING
• Origin：Shenzhen China
• HS Code：8541401000
• Production Capacity：500PCS,Per Day

Basic Info.

Model NO. BB-RSD-002 Switch Type Rotary/Button Lamp Holder 2pins Product Name High Power 60W LED Wall Lighting Wall Mount Dlc Lighting Source 250PCS 5630 Epistar Chip Lamp Base 2pins Power Consumption 60W Size 13.2"*9.8"*7.9" Luminous Flux 8000lm Color Temperature Standard Warm White Natural White Cool White Color Rendering Index(CRI) >75 Replacement 175W Mh HPS HID Application Buildings ,Lawn ,Factory ,Wall Transport Package Standard Export Box and Carton 4PCS/Carton Specification 83*44*64cm Trademark BBIER LIGHTING Origin Shenzhen China HS Code 8541401000 Production Capacity 500PCS/Per Day

Product Description

Welcome to view our

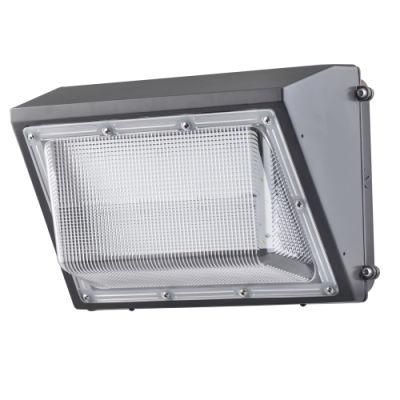

High power 60w led wall lighting wall mount dlc

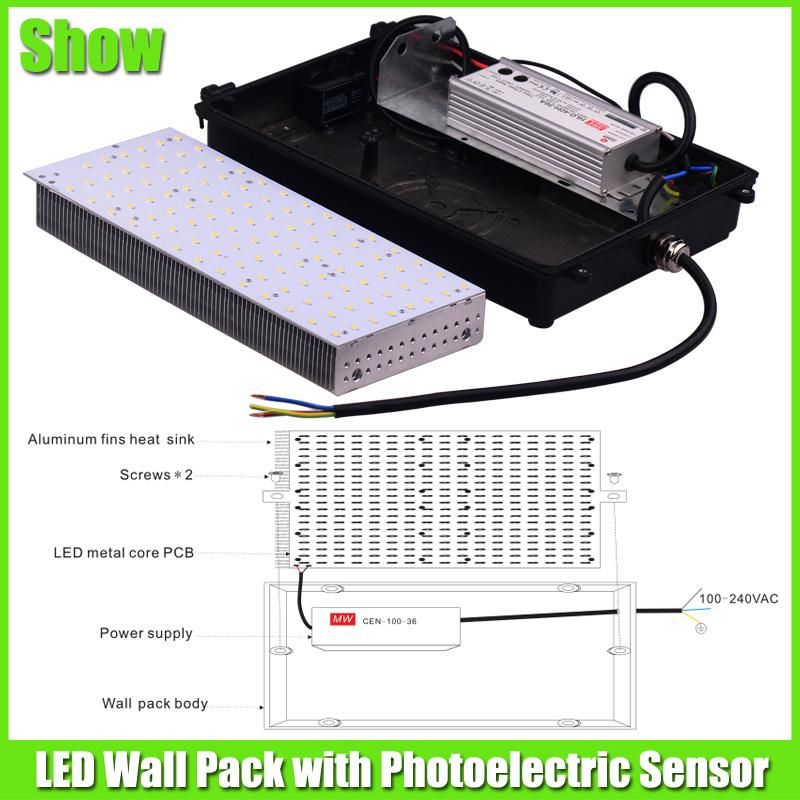

High power 60w led wall lighting wall mount dlc we designned it mainly replace the traditional
Wallpack fixture take off the traditioanl ballast. Then screw the led plate to wallpack fixture. So that make the traditional wallpack to be LED application directly.

Specifications:
1. Beam Angle: 120°
2. Light Source/Count: 250PCS 5630 SMD LED
3. Lamp Base: 2pins
4. Power Consumption: 60W± 10%
5. LED Luminous Efficiency: >100lm/w
6. Luminous Flux: 6000 lm ± 5% ( Tj=70° , Ta=25° )
7. Lamp's Efficiency ( %): >95%
8. Color Temperature Standard:
1)Warm White: 2, 700 ~ 3, 500 K
2)Natural White: 4, 000--5, 000 K
3)Cool White: 5, 500--6, 700K
9. Color Rendering Index(CRI): Ra>80
10. LED Emitter Life: 50, 000 hours
11. LED Lamp (Light Bulb) Life: 35, 000 hours
12. Replacement: MH HPS 90W
12. Input Voltage: 100-277VAC/50-60Hz
13. PF: >0.95
14. Power Efficiency: >87%
15. Working Voltage: 32VDC ± 5%
16. Power Consumption (Bulb/LED): 30W ± 10%
18. Power Supply: 5W
19. Operating Temperature: -40 ~ 55°

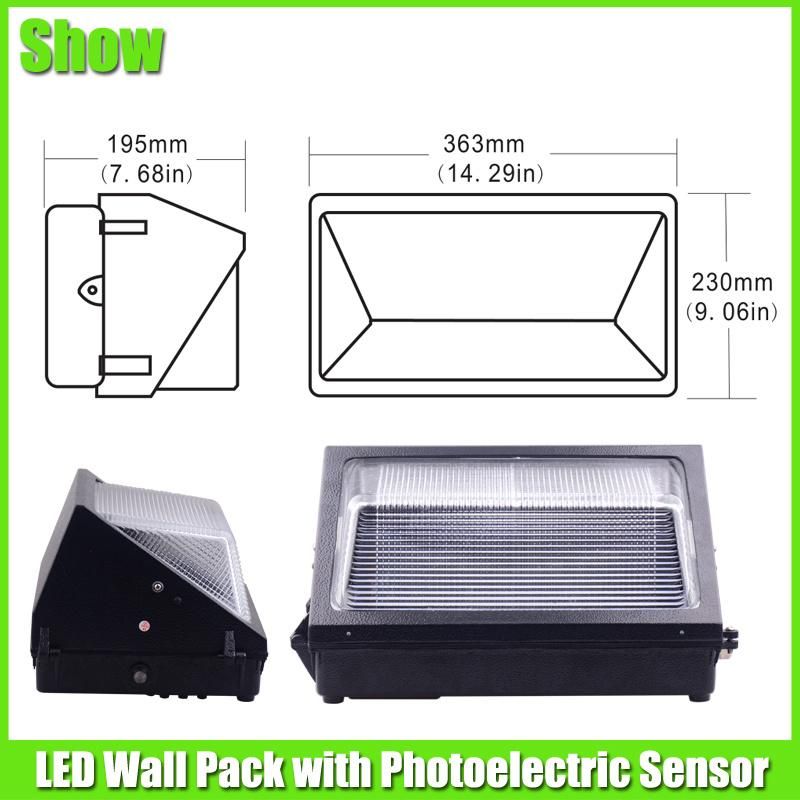

20. The Dimensions: Dia13.2"*9.8"*7.9"

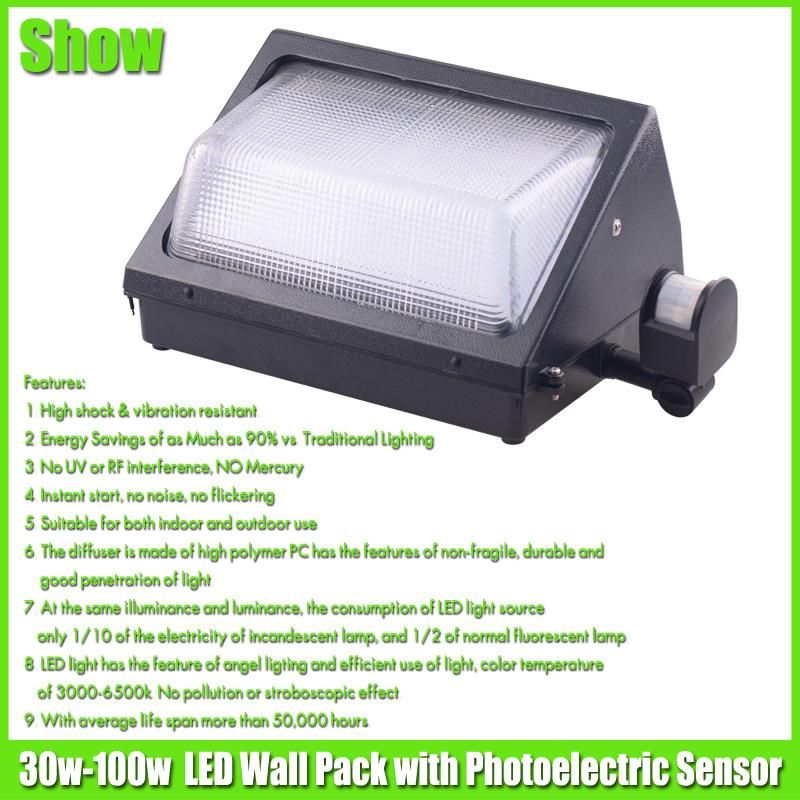

Competitive Advantages:
1)High power 5630 epistar chip 100lm/w after lens
2)Streamline exterior design, beautiful appearance
3)Retrofit fin lamp body design and larger heat dissipation area.
4)Special circuit design, each LED work separately, avoiding the single broken LED influence problem
5)UL TUV PSE approved 5years warranty meanwell driver

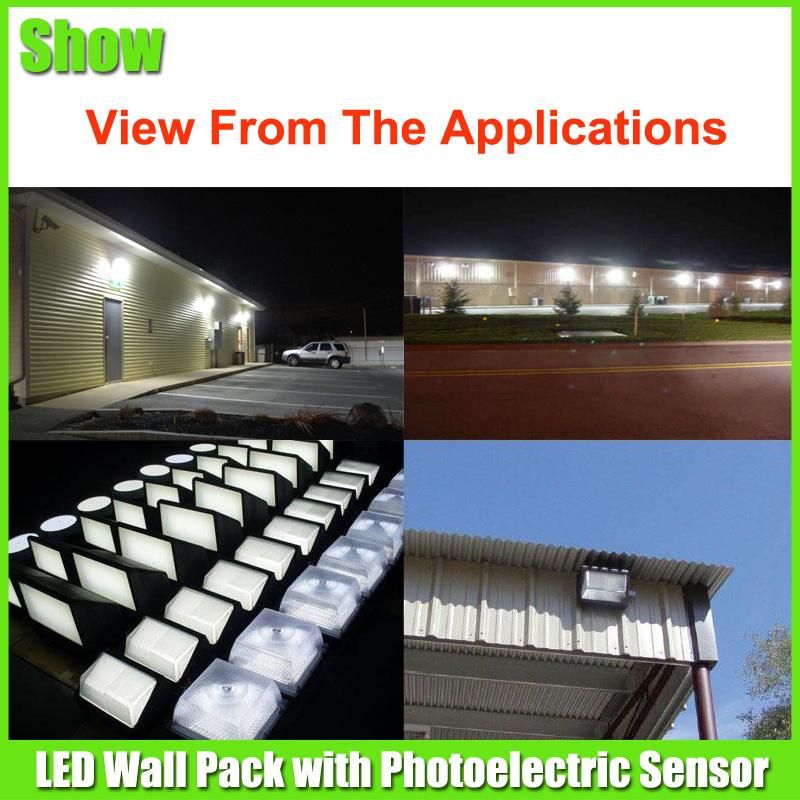

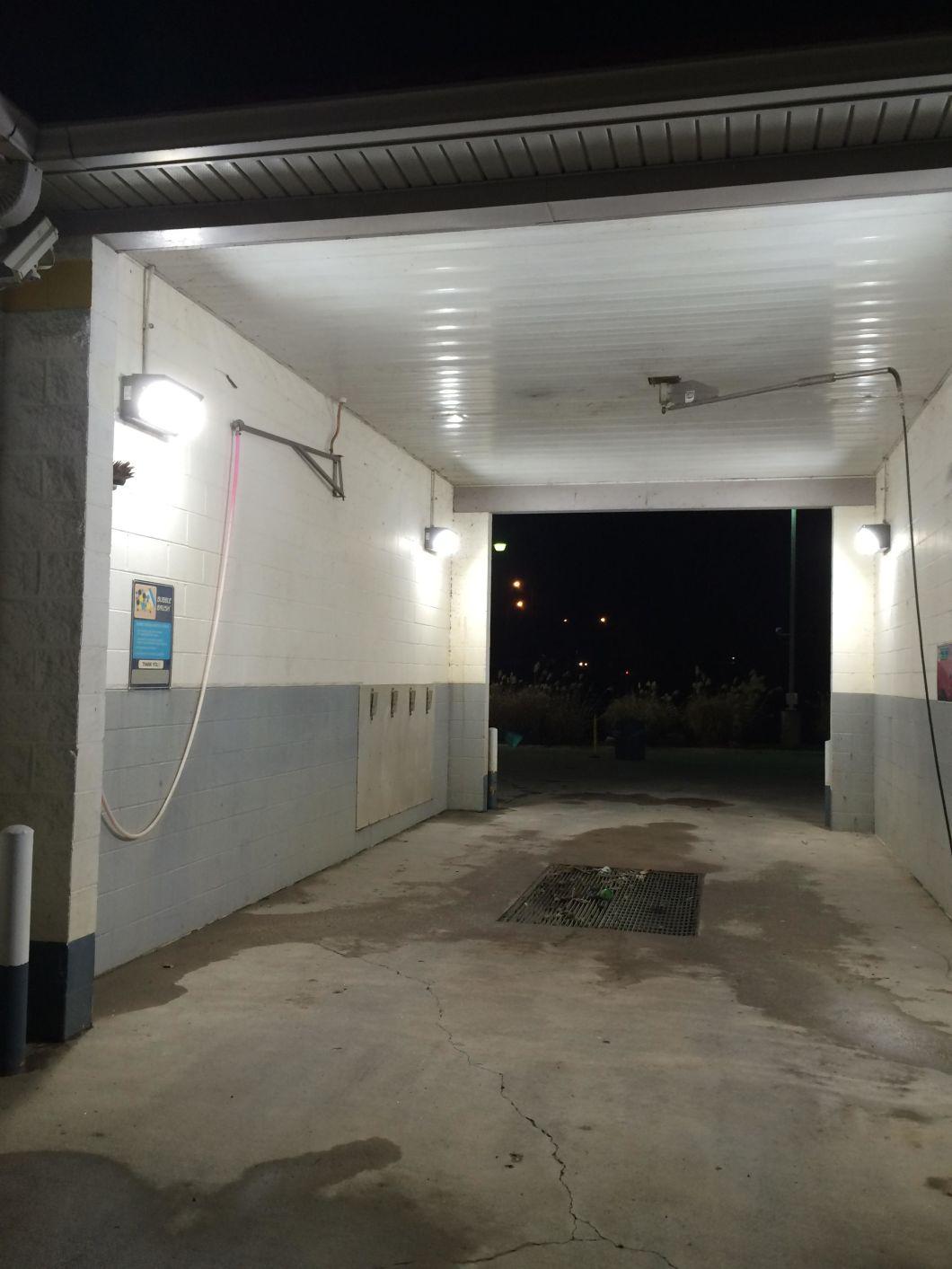

We Mainly Applied:
1. Parking garages
2. Factories
3. Warehouse
4. Gas station
5. Gymnasiums
6. Wineries
7. Schools/government buildings
8. Supermarket
9. Exhibition
10. Restaurants
11. Hospitals
12. Banks

BBIER offer customer FREE Hi resolution product Retrofit canopy light picture with logo
Specification without logo, IES files.

Our Factroy Advantages:
1. We have our own independent R & D department, and we will develop new products irregular, otherwise we own 3000² Factory, 200worker, 5 mass operating machine, SMD mounting machine
Lighting testing mechine and IES file testing
2. Our products must pass strict quality control procedures.
3. We have advanced production equipment.
4. We use the raw materials are from domestic and foreign well-known brand manufacturers.
5. After repeated tests before shipment.
6. Transportation: We work with the international well-known shipping company DHL, FedEx, UPS and
Other large companies, so we can provide the fast transport speed and good prices.
7. We will provide the customer a legitimate usage manual for our products before shipment; If necessary,
We also will provide technical support.
8. Regarding the LED sources, all of them must tested by a series of bad condition include the highest and
Lowest temperature, so the quality is very stable.
9. In addition, we also can provide OEM and ODM. S.


Bbier Team Service:
1. Your inquiry related to our products or prices will be replied in 24hrs.
2. Well-trained and experienced staffs to answer all your enquires in fluent English.
3. Any your customized lightings, we can help you to design and put into product.
4. Distributor are offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.

Trade term
EXW, FOB SHENZHEN CIF at your port
MOQ: 2PCS
Delivery time: 3-5 working days for sample order, 7-20 working days for mass order.
T/T L/C Paypal Wester Union etc.

Looking forward to hear from your early inquiry back, Let us to help your business and make it bigger

BBIER Lighting offer	E40 E39 E27 E26 Led Garden Light ; Led Corn light; Led Pizza Tray Light . E40 Retrofit Kits Canopy Light , Wallpack Light ,Mini Corn with cover light Shoebox street light,retrofit modulars,210degree tube ,360degree tube lights, Acdcept OEM and ODM . ISO9001:2008 certificated ,CE ROHS certificated, 3 years warranty for all products .
Main application for retrofit led canopy light	Home lighting ,warehouse lighting ,factory lighting ,industrial lighting supermarket lights.outdorr street lights , walllights ,pakring lots lights stadium ,gym application lights ,toll station lights , lawn lights .decoration lights pole lights , shoebox street lights ,safety lamps
our cooperated supplier	CREE BRIDGELUX MEANWELL SAMSUNG RUBY
