• Model NO.：YC-TD
• Application：Home Furnishing
• Certification：CE, RoHS
• Voltage：100-240V
• Applicable Places：Washroom, Conference Room, Living Room, Restaurant, Study Room, Bedroom
• PF：0.95
• Lead Time：3-5 Working Days
• Color：Milk White Cover
• Transport Package：Carton
• Specification：CE ROHS
• Trademark：YC
• Origin：China
• HS Code：9405409000
• Production Capacity：50000PCS,Month

Basic Info.

Model NO. YC-TD Application Home Furnishing Certification CE, RoHS Voltage 100-240V Applicable Places Washroom, Conference Room, Living Room, Restaurant, Study Room, Bedroom PF 0.95 Lead Time 3-5 Working Days Color Milk White Cover Transport Package Carton Specification CE ROHS Trademark YC Origin China HS Code 9405409000 Production Capacity 50000PCS/Month

Product Description

led down lights series(Dimmable or non-dimmable are possible)

10w D110*H65mm. cut out:95mm                           15w  D135*H72mm    cut out:110mm

25w  D160*H75mm  cut out:130mm                       40w  D195*H107mm,  Cut out:170mm

50w D235*H127mm cut out:200mm

Led down lights 25w

1. wat: 25w                                                                         2. LED  Source: Cob led

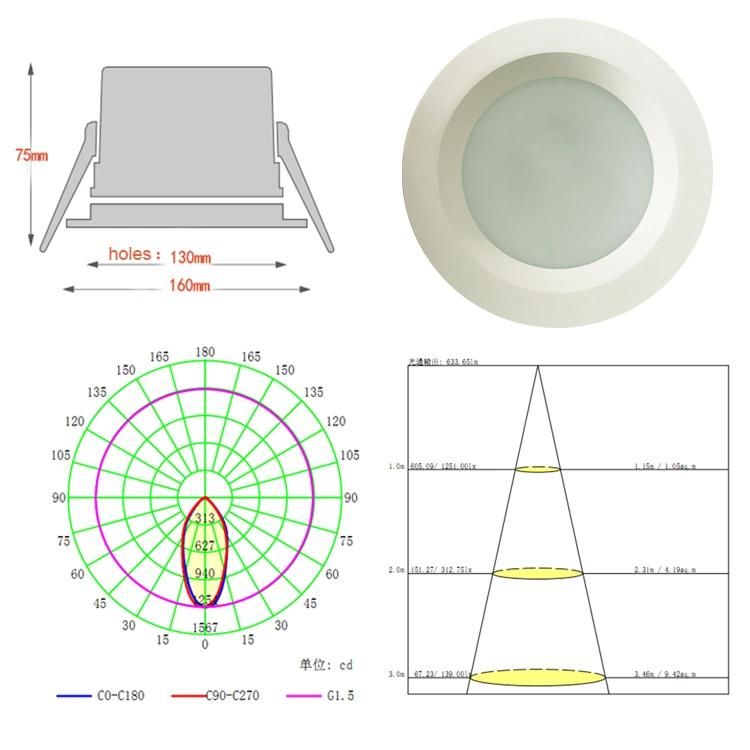

3.body Material: Die casting  ALu                               4.dimensions:D160*H75mm  cutout:130mm

5.Input Voltage:100-240/50-60hz                              6.Color :warm/neutral/cool white

7.bean angle: 50 degree                                                 8. Luminous Efficiency:100lm/w

9.Power factory: >0.9                                                    10.color render index:about 85

11.ip grade: IP44                                                              12. warranty: 3 years

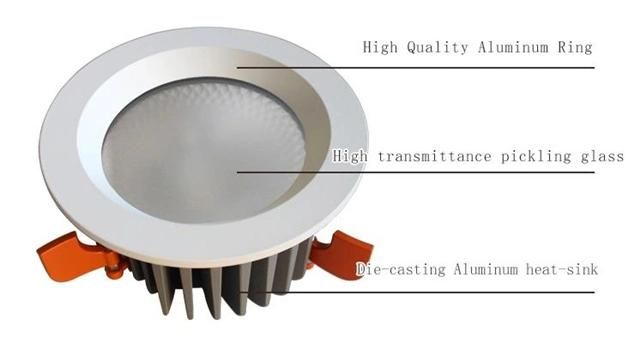

Detail picture



color temperature

Feature

1.Energy saving: led down lights can save about 80% evergy than tradational lamp

2.using high quality led as the led source: Cree led or Epistar led

3. the wholes led down lights 25w can work more than 25 000 hours

4.Eco-friendly: NO harmful radiate spectrums such as uv or infrared ray included

5.CE and rohs passsed

6.breakage resistance:solid led light source and not easy to damage

7.using extrusion aluminum anodic oxidation treatment,make better heat dissipation

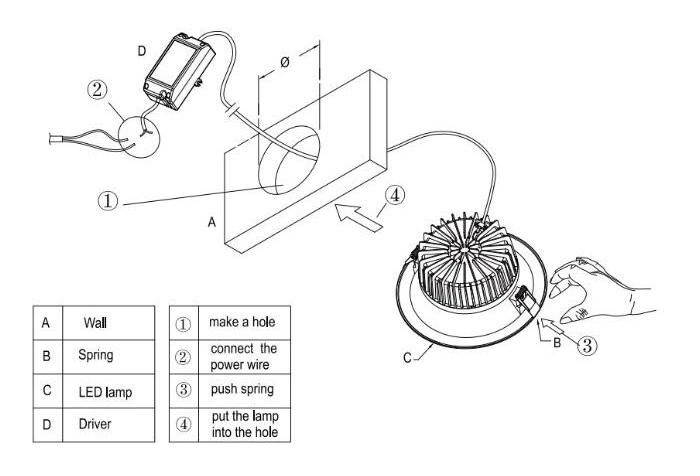

Installation

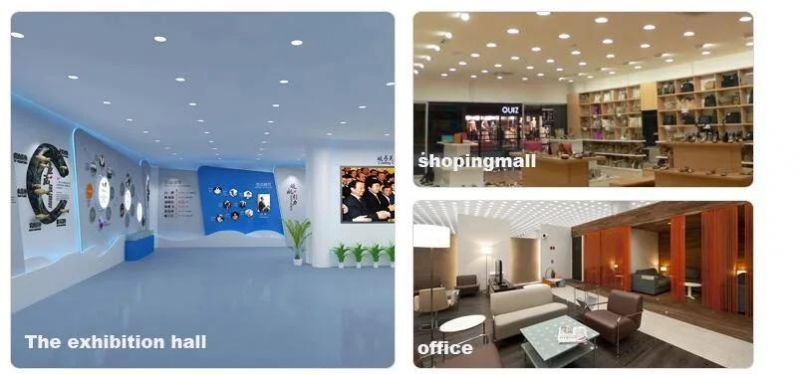

application

led downlights are designed to fit any ceilijng surface,suspended and hanging for other types of ceilings such as art galleries,homes,schools.offices.hotels,restaurants,retails stores and other commercial or industrial applications
