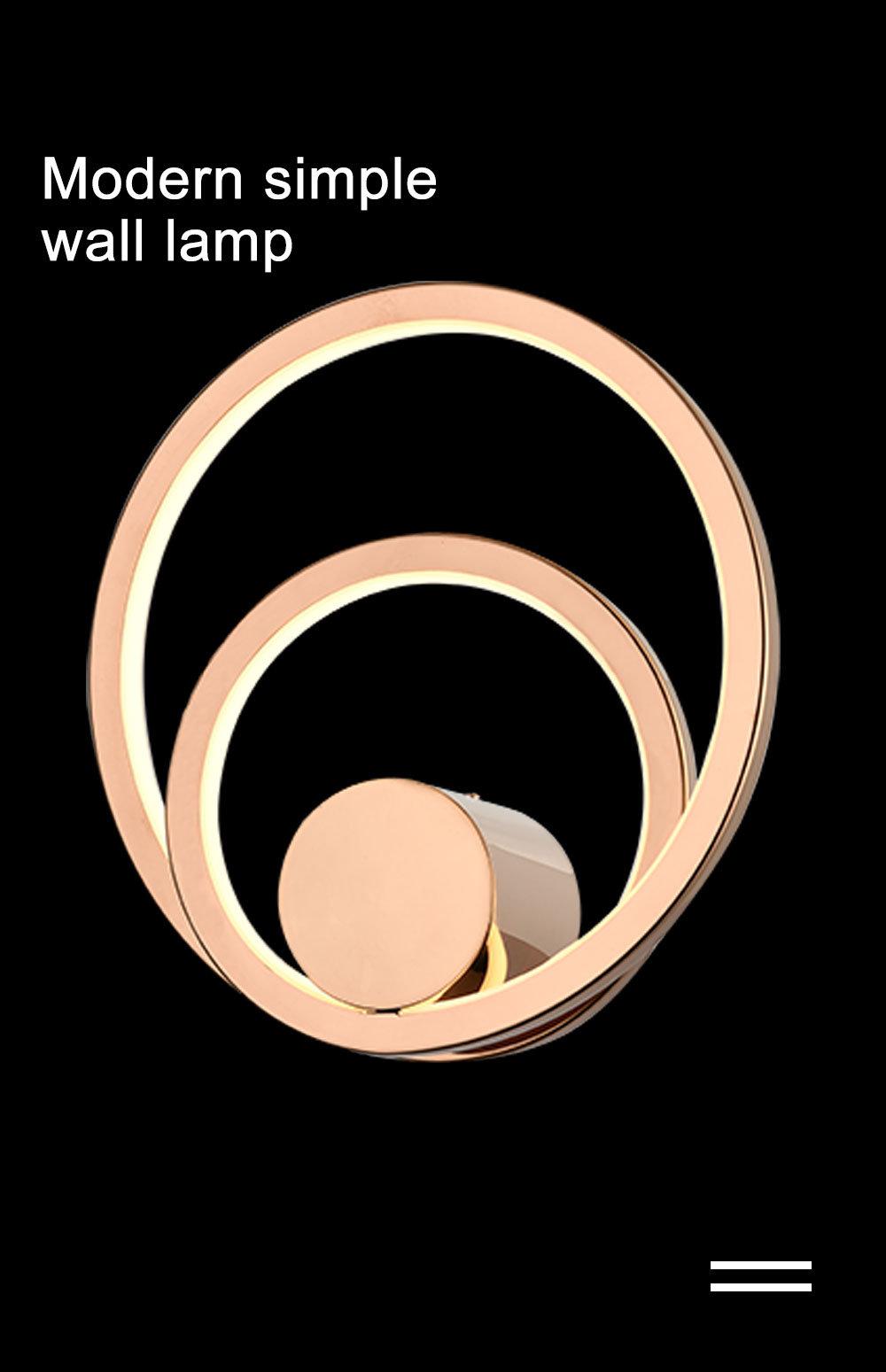

LED Indoor Interior Decoration Wall Circle Ring Tavolo Living Room Bedroom Bar Hallway Lobby Hotel Light
Zhongshan Camilamp Lighting Co., Limited- Material：Steel
- Style：Decorative
- Light Source：LED
- Shape：Round
- Certification：CE, RoHS, UL, CCC, VDE, ETL,PSE,SAA
- Voltage：Euro 90-264V,Us 277V
Base Info
- Model NO.：EC-1047-W
- Switch Type：Touch Switch
- Lamp Holder：LED Strip
- Quantity of Lights：LED Strip
- With Light Source：With Light Source
- The Material：Stainless Steel + Silica Gel
- Specification：D300*40
- Trademark：Camilamp,Customized
- Origin：Guangdong, China
- Production Capacity：50000
Description
★ Product Overview and application

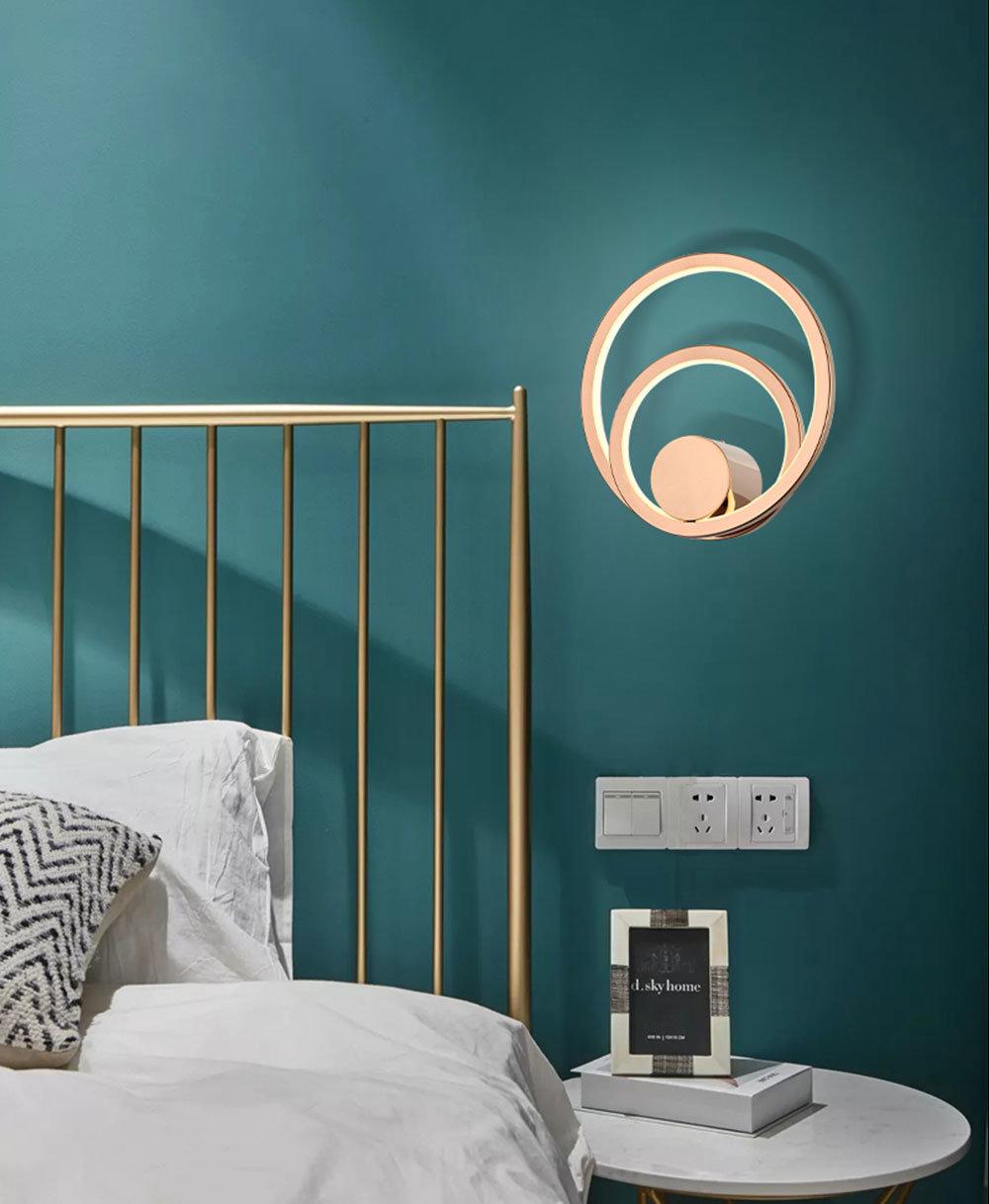

Areas of application_ Indoor Kitchen/Meeting Room/Relaxing
_ Bar/Counter/hotel/Hallway
_ Bedroom/Living room
_ Lobby/Stair
Product family benefits
_ Bright and efficient LED light source that provides superior light quality with wall light CRI >90
_ Low cost operation: - Saves 80% energy compared to other Eliminates the cost of over 6MULTI replacements over the life of the fixture (L70 = 30000 hrs)
_ Stainless steel with perfect Finishing
_ Environmental friendly: No hazardous materials
_ UGR ≤ 20
_ SDCM ≤ 5
_ PF ≥ 0.9
_ Flickering ≤ 5%
Product family Features
_ Long lifetime: up to 30,000 h
_ Stainless steel + Optical Silica Gel
_ Light Efficiency: up to 100 lm/W
_ Combination of easy and flexible use
Technical data
General Product information
| Product Number | EC-1047-W |
| Product Name | Spring table LED light |
| Brand Name | CAMILAMP Lighting |
| Dim Method | Normal, OR OPTIONAL (DALI, ZIGBEE, BLUETOOTH TUYA, TRIAC PHASE CUT; 0-10V); |
| THD at Ta | ≤ 20 (EN61000-3-2) |
| General Description | table LED, IP20, Watts optional (Each Ring) : 4-30W (Max) L-N 1KV, L/N-PE 2KV (IEC60598) |
| IEC 60598 | Fulfill |
| Average Rated Life | 30000 h at normal T |
| Operating Temperature Range (90% Lumen output - ambient temperature) | -10°C to 40°C |
| Operating Temperature Range (normal and any variations required) | -20°C to 70°C |
| Quality Guarantee | 3 Years/5years |
Electrical data
| Nominal Wattage | 12W (Max) |
| Nominal Voltage (Remark US or EU) | 198-264VAC (EU Standard)/100-277 (US Standard) |
| Line frequency | 50/60HZ |
| IP and IK ingress | IP20/IK02 |
| AC input current | 0.06A @230Vac |
| PF factor | ≥0.9 |
| IEC 61347 | Fulfill |
| Driver Brand | OSRAM/3AAA/Eaglerise |
Light Technical data
| Luminous Flux | 1200 lumens MAX |
| Light General | 3000K/4000K |
| Light Brand | OSRAM/BridgeLux/CREE/Sanan |
| CCT | 3000K/4000K |
| SCDM | ≤ 5 |
| UGR | ≤ 22 |
| Light Flicking | ≤ 5% |
Key Materials
| Housing Material and Installation Box | Superior Iron |
| Body Color and Installation Box color | Golden rose/Phantom |
| Optical Cover | Silicon Gel |
| Cover Color | Transparent 90% rate |
Additional product data
Packaging Information
| Product number | Packaging | Quantity | Outside dimensions l x w x h | Gross weight | |
| EC-1047-W | Shipping box (Case) | 100 | See spec |
