• Model NO.：yc-tdcob
• Application：Home Furnishing
• Certification：CE, RoHS, EMC
• Voltage：100-240V
• Applicable Places：Washroom, Kitchen, Conference Room, Living Room, Study Room
• Power Factor：0.90
• Size：D110*H120
• LED Source：CREE COB
• Driver：Lifud
• Wat：10W
• CRI：80
• Body Color：White & Black
• Lumens：110lm,W
• Color：2700-6000K
• Transport Package：Carton Box
• Specification：ce & rohs
• Trademark：yc
• Origin：China
• HS Code：9409509000
• Production Capacity：10000, Months

Basic Info.

Model NO. yc-tdcob Application Home Furnishing Certification CE, RoHS, EMC Voltage 100-240V Applicable Places Washroom, Kitchen, Conference Room, Living Room, Study Room Power Factor 0.90 Size D110*H120 LED Source CREE COB Driver Lifud Wat 10W CRI 80 Body Color White & Black Lumens 110lm/W Color 2700-6000K Transport Package Carton Box Specification ce & rohs Trademark yc Origin China HS Code 9409509000 Production Capacity 10000/ Months

Product Description

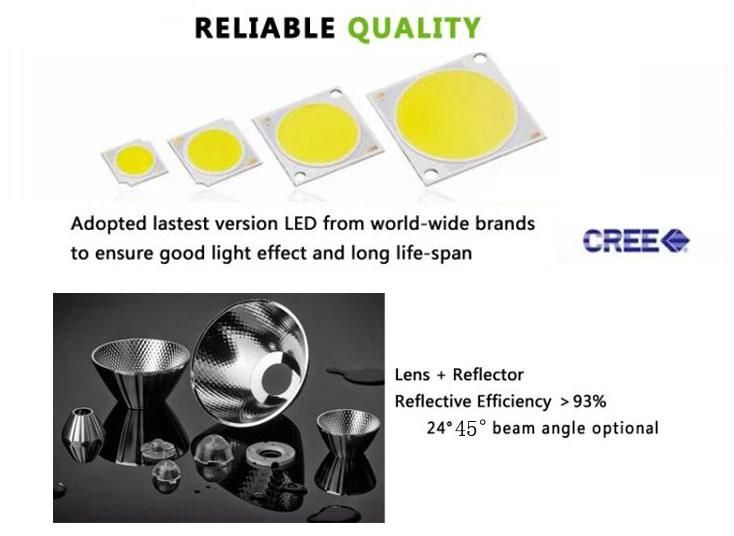

 led pendant lights nz series is using lifud driver and CREE Cob led to produce,offer 3 years warranty,reach 110lm/W

led pendant lights nz series feature

1.Model No:YC-TDCOB                                        2.beam angle:  24° & 45 °

3.voltage: ac200-240v/50-60hz                           4. CRI: >80

5.material:AL+PC                                                  6.body color: white & black

7.lumens: reach 105lm/W                                      8. led chip: CREE & CITIZEN & Epistar

9.led source: COB led

10.install ways: suspend or ceilling on the roof

led pendant lights Descripation

model  NO         wat             voltage                  Driver           color                               size

yc-tdcob-7          7w            ac200-240v          Lifud         2700-6000K              D90*H90mm

Yc-tdcob-10      10w           ac200-240v           Lifud         2700-6000k              D110*120mm

yc-tdcob-20       20w           ac200-240v           Lifud          2700-6000k             D 130*152mm

yc-tdcob-30      30w            ac200-240v           Lifud         2700-6000k              D170*185mm

yc-tdcob-40       40w           ac200-240v          Lifud         2700-6000k                D193*193MM

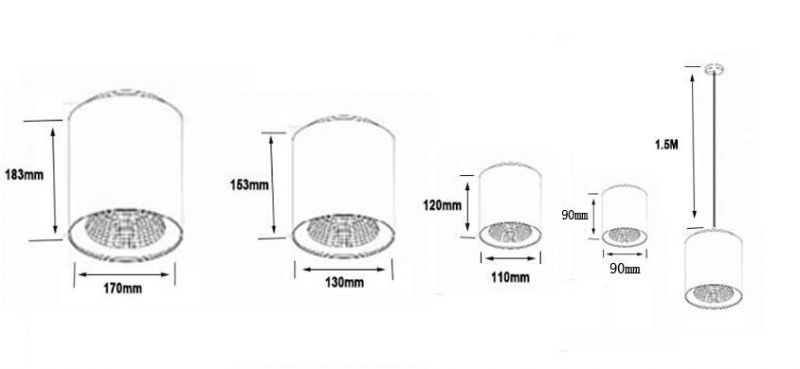

size drawing

Detail information

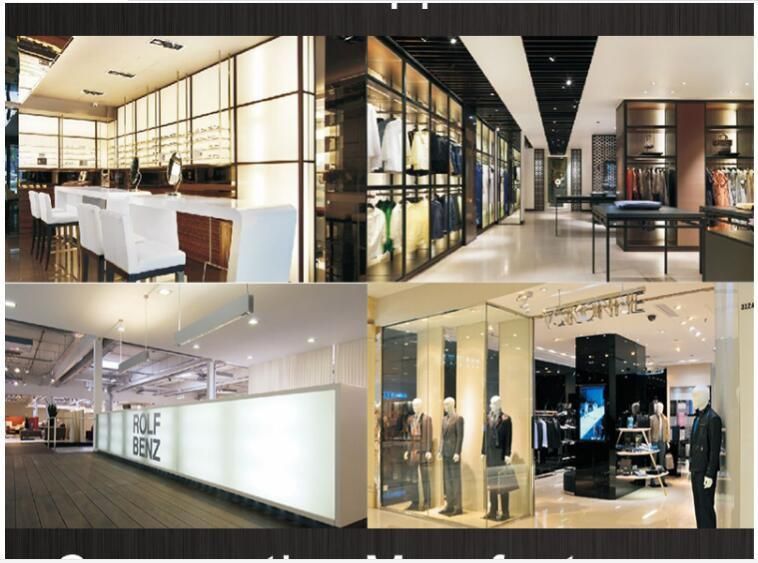

Application

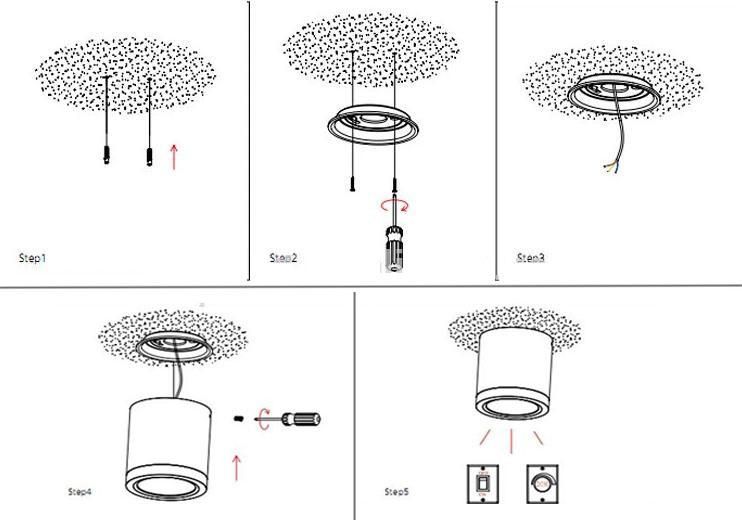

install step



Produce information & delivery info
1.produce date : 5-7workdays
2. Delivery info: By sea & FEDEX & by air

perfect after-sell service

offer 3 years warranty(once problem,will arrange new to replace)

warming

1.can't be suspened or directly mounted on the fragile objects.such as gypsum board ceiling .fire-barriers ceiling

2. be hung under solid objects,like concrete ceiling ,brick wall.woor or any other solid objects

3.before installation. do cut off the power

CE and rohs certification
