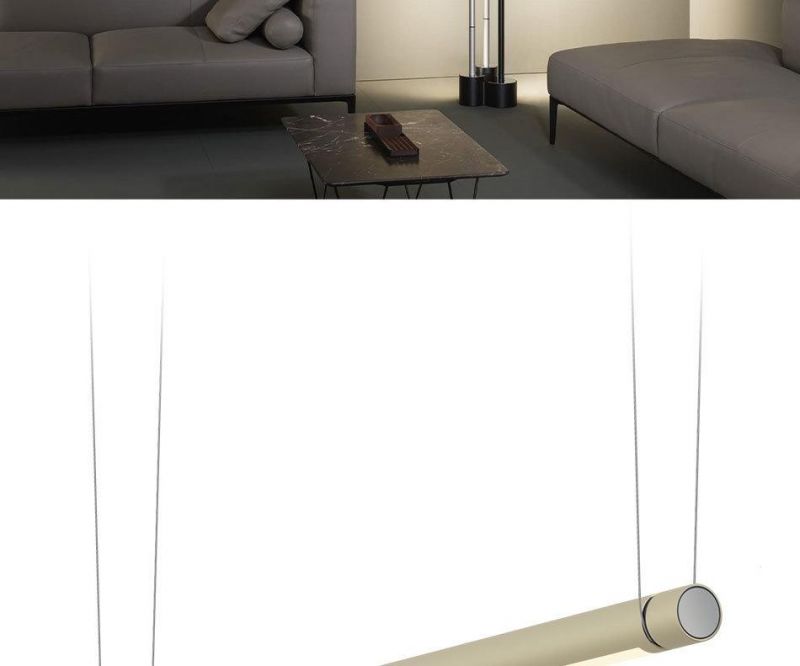

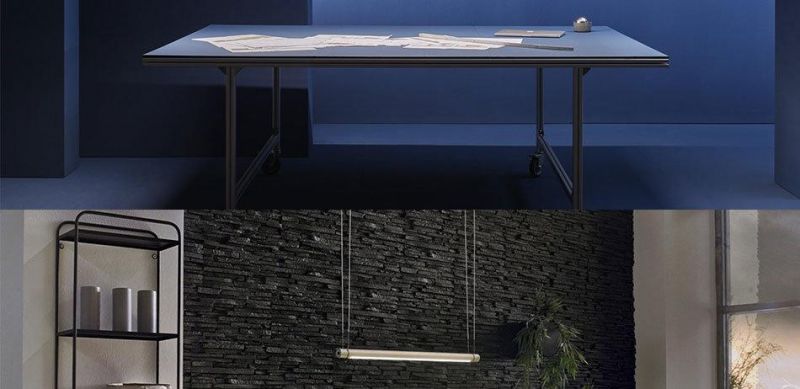

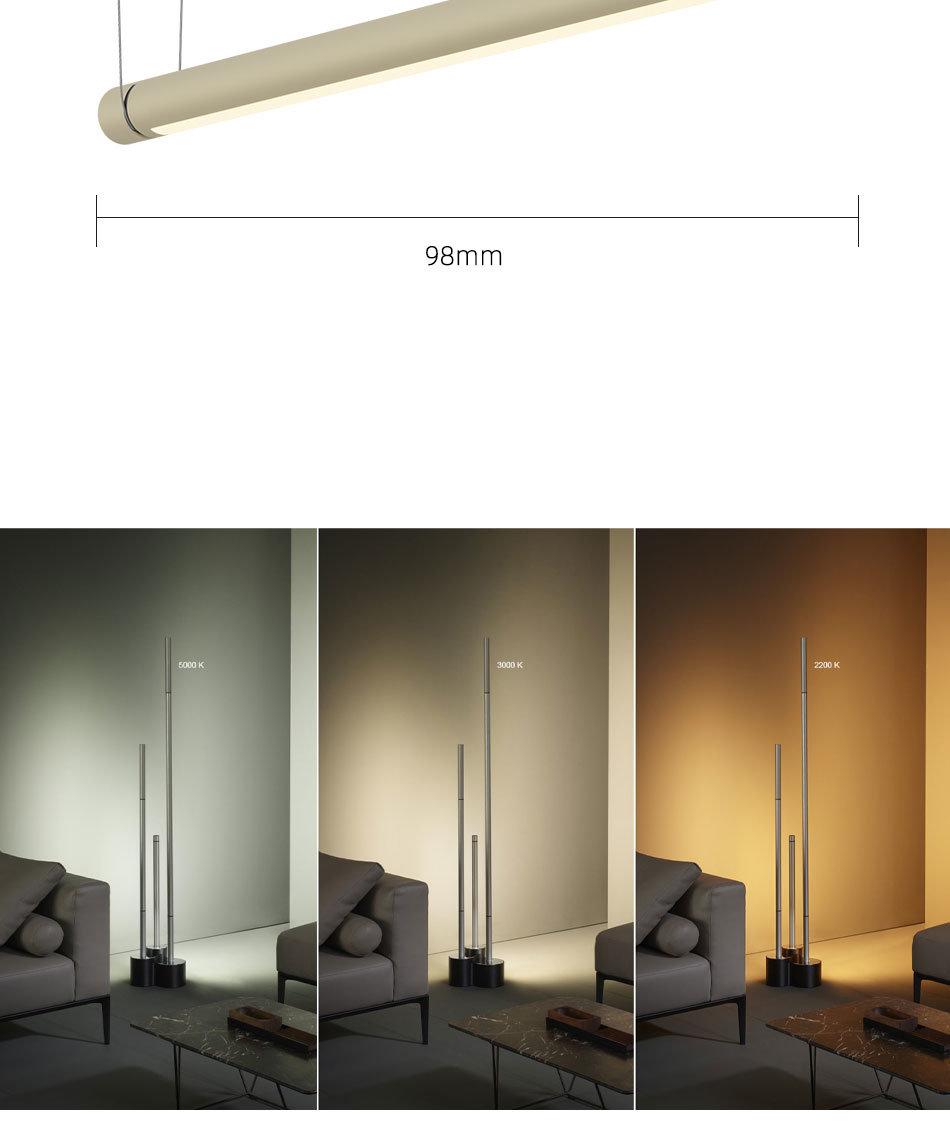

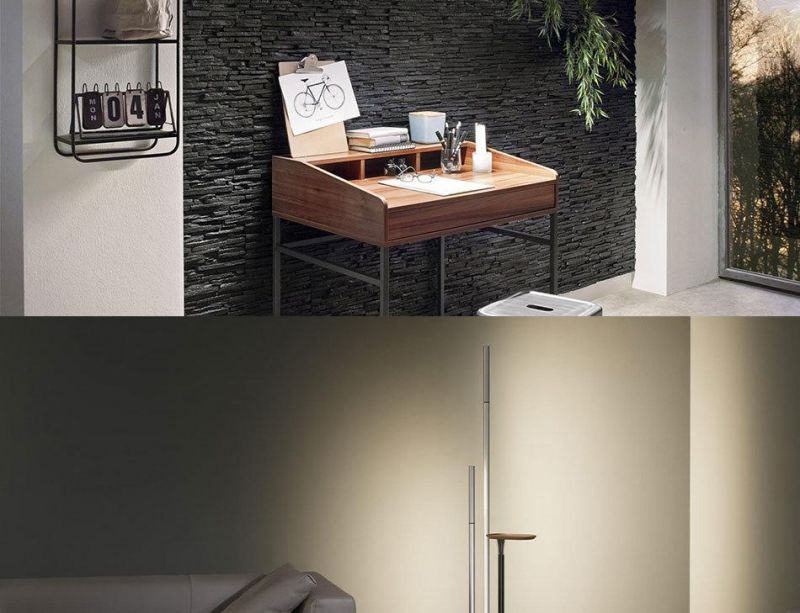

LED Indoor Linear Slack-Line Single Luminaires Decorative Floor Modern Pendant Hanging Living Room Hotel Bar Restaurant Light
Zhongshan Camilamp Lighting Co., Limited- Light Source：LED
- Material：Aluminium
- Style：Modern
- Quantity of Lights：LED Strip
- Frame Material：Aluminium
- Frame Color：Transparent,Smoke Grey,Yellow,Purple,Dark Brown
Base Info
- Model NO.：EC21657
- Certification：CE, CCC, RoHS, ETL,SAA,PSE
- Beaming Angle：80°
- With Light Source：With Light Source
- Applicable Places：Bar,Hotel,Bedroom,Lobby,Office,Dining Room
- Transport Package：Variable to Models, See Spec
- Specification：Variable to models, see spec
- Trademark：Camilamp,Customized
- Origin：Guangdong, China
- Production Capacity：50000
Description
★ Product Overview and application
Areas of application_ Indoor Kitchen/Meeting Room/Relaxing
_ Bar/Counter/hotel/Hallway
_ Bedroom/Living room
_ Lobby/Stair
Product family benefits
_ Bright and efficient LED light source that provides superior light quality with wall light CRI >90
_ Low cost operation: - Saves 80% energy compared to other Eliminates the cost of over 6MULTI replacements over the life of the fixture (L70 = 30000 hrs)
_ Aluminium with perfect Finishing
_ Environmental friendly: No hazardous materials
_ UGR ≤ 20
_ SDCM ≤ 5
_ PF ≥ 0.9
_ Flickering ≤ 5%
_ Height adjustment (50-200 MM) and gesture control with touchless sensor
Product family Features
_ Long lifetime: up to 30,000 h
_ Aluminium + Optical Silica Gel
_ Light Efficiency: up to 86 lm/W
_ Combination of easy and flexible use multiple
Technical data
General Product information
| Product Number | EC21657-P/EC21657-F |
| Product Name | Slack-line LED Pendant/Floor light |
| Brand Name | CAMILAMP Lighting |
| Dim Method | Normal, OR OPTIONAL (DALI, ZIGBEE, BLUETOOTH TUYA, TRIAC PHASE CUT; 0-10V); |
| THD at Ta | ≤ 20 (EN61000-3-2) |
| General Description | Pendant LED, IP20, Watts optional (Each Ring) : 15W L-N 1KV, L/N-PE 2KV (IEC60598) |
| IEC 60598 | Fulfill |
| Average Rated Life | 30000 h at normal T |
| Operating Temperature Range (90% Lumen output - ambient temperature) | -10°C to 40°C |
| Operating Temperature Range (normal and any variations required) | -20°C to 70°C |
| Quality Guarantee | 3 Years/5years |
Electrical data
| Nominal Wattage | 15W (Max) |
| Nominal Voltage (Remark US or EU) | 198-264VAC (EU Standard)/100-277 (US Standard) |
| Line frequency | 50/60HZ |
| IP and IK ingress | IP20/IK02 |
| AC input current | 0.11A/0.16A/0.21A @230Vac |
| PF factor | ≥0.9 |
| IEC 61347 | Fulfill |
| Driver Brand | OSRAM/3AAA/Eaglerise |
Light Technical data
| Luminous Flux | 1300lumens |
| Light General | 3000K/4000K/5000K, 90 CRI, 86Lm/W |
| Light Brand | OSRAM/BridgeLux/CREE/Sanan |
| CCT | 3000K/4000K/5000K |
| SCDM | ≤ 5 |
| UGR | ≤ 22 |
| Light Flicking | ≤ 5% |
Key Materials
| Housing Material and Installation Box | Aluminium |
| Body Color and Installation Box color | Matt white/Matt black/Matt Golden Rose/Titanium/Matt Silver/Phantom |
| Optical Cover | Silicon Gel |
| Cover Color | Transparent 90% rate |
Additional product data
Packaging Information
| Product number | Packaging | Quantity | Outside dimensions l x w x h | Gross weight | |
| EC21657 | Shipping box (Case) | 100 | Based on Combination of ring c | See spec |
