Ceiling Mount Mito Suspend Floor Living Dining Hallway Lobby Bar Hotel Office Sospeso Hanging Lighting Chandelier

Zhongshan Camilamp Lighting Co., Limited
  • Style：Modern
  • Certification：CE, CCC, RoHS

Base Info

  • Model NO.：EC7424
  • Beaming Angle：80°
  • With Light Source：With Light Source
  • Transport Package：Variable to Models, See Spec
  • Specification：Variable to models, see spec
  • Trademark：Camilamp,Customized
  • Origin：Guangdong, China
  • Production Capacity：50000
  • Package size per unit product：600.00cm * 600.00cm * 100.00cm
  • Gross weight per unit product：10.000kg

Description

 Product Specification  Watch VideosCooperated Provision  QuotationInstallation Instruction&Tip  ComplaintAgent certification Product NameRing "C" LED Pendant light Product CodeEC7424 MOQ (PCS)30 Payment TermPayment terms-TT, 30% deposit, 70% balance must be paid before delivery. Irrevocable  L/C at sight. West union, paypal Delivery Time15-20 Days after deposit

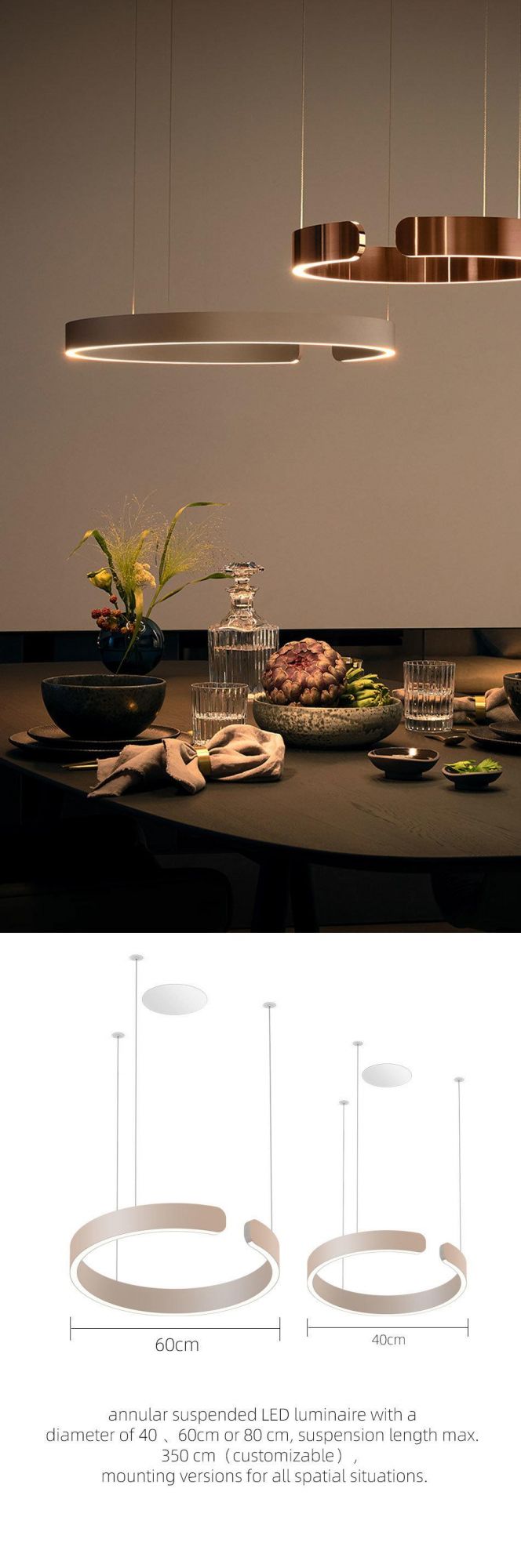

★  Product Overview and applicationCeiling Mount Mito Suspend Floor Living Dining Hallway Lobby Bar Hotel Office Sospeso Hanging Lighting Chandelier Areas of application

_ Indoor Kitchen/Meeting Room/Relaxing
_ Bar/Counter/hotel/Hallway
_ Bedroom/Living room
_ Lobby/Stair

Product family benefits

_ Bright and efficient LED light source that provides superior light quality with wall light CRI >90
_ Low cost operation: - Saves 80% energy compared to other Eliminates the cost of over 6MULTI replacements over the life of the fixture (L70 = 30000 hrs)
_ Superior Stainless steel / Aluminium with perfect Finishing
_ Environmental friendly: No hazardous materials
_ UGR ≤ 20
_ SDCM ≤ 5
_ PF ≥ 0.9
_ Flickering ≤ 5%
_ Height adjustment (50-200 MM) and gesture control with touchless sensor

Product family Features

_ Long lifetime: up to 30,000 h
_ Superior Stainless Steel / Aluminium + Optical Silica Gel
_ Light Efficiency: up to 96 lm/W
_ Combination of easy and flexible use multiple

Technical data
General Product information
Product Number
Δ Attend : Combination of Ring C		XJC7424-P40/XJC7424-P60/XJC7424-P80
Product NameRing"C" LED Pendant light
Brand NameCAMILAMP Lighting
Dim MethodNormal, OR OPTIONAL (DALI, ZIGBEE, BLUETOOTH TUYA, TRIAC PHASE CUT; 0-10V);
THD at Ta≤ 20 (EN61000-3-2)
General Description

Δ Attend : Combination of Ring C		Ring"C" LED, IP20,
Watts optional (Each Ring) : 24W/36W/47W
L-N 1KV, L/N-PE 2KV (IEC60598)
IEC 60598Fulfill
Average Rated Life30000 h at normal T
Operating Temperature Range
(90% Lumen output - ambient temperature)		-10°C to 40°C
Operating Temperature Range
(normal and any variations required)		-20°C to 70°C
Quality Guarantee3 Years/5years

Electrical data
Nominal Wattage24W/36W/47W (Max)
Nominal Voltage (Remark US or EU)198-264VAC (EU Standard)/100-277 (US Standard)
Line frequency50/60HZ
IP and IK ingressIP20/IK02
AC input current0.11A/0.16A/0.21A @230Vac
PF factor ≥0.9
IEC 61347Fulfill
Driver BrandOSRAM/3AAA/Eaglerise

Light Technical data
Luminous Flux2304/3456/4512lumens
Light General3000K/4000K/5000K, 90 CRI, 96Lm/W
Light BrandOSRAM/BridgeLux/CREE/Sanan
CCT3000K/4000K/5000K
SCDM≤ 5
UGR≤ 22
Light Flicking ≤ 5%

Key Materials
Housing Material and Installation BoxSuperior Stainless steel /Aluminium
Body Color and Installation Box colorMatt white/Matt black/Matt Golden Rose/Titanium/Matt Silver/Phantom
Optical Cover Silicon Gel
Cover ColorTransparent 90% rate

Additional product data
Packaging Information
Product number PackagingQuantityOutside dimensions l x w x hGross weight
XJC7424-P40
/XJC7424-P60
/XJC7424-P80		Δ Attend : Combination of Ring CShipping box (Case)1Based on Combination of ring cSee spec

Ceiling Mount Mito Suspend Floor Living Dining Hallway Lobby Bar Hotel Office Sospeso Hanging Lighting Chandelier
